Paths and Shapes

Beyond simple node-to-node connections, tikzfigure lets you draw arbitrary paths from lists of (x, y) coordinates.

  • drawing open and closed coordinate paths
  • filldraw for filled closed shapes
  • rounded corners
  • per-segment styling with segment_options

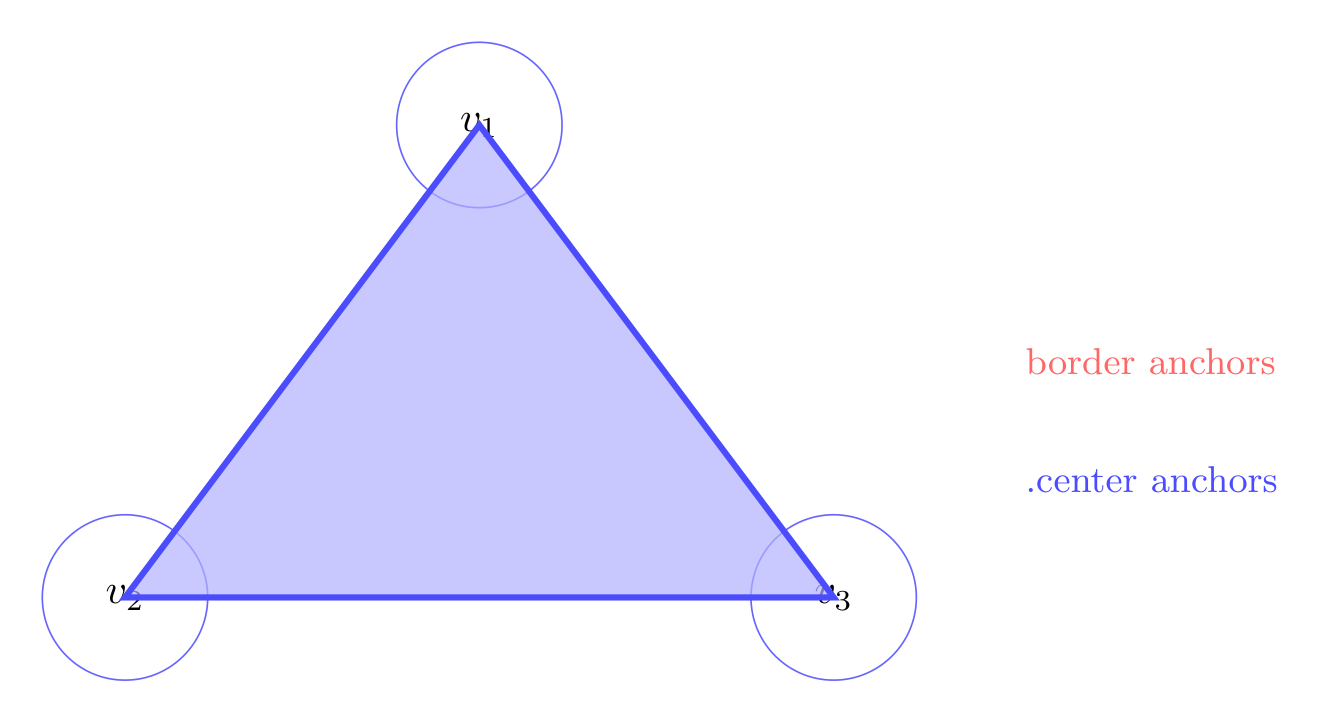

  • node paths and .center anchors for correct fills

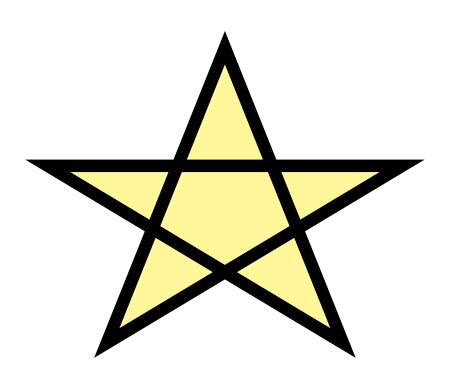

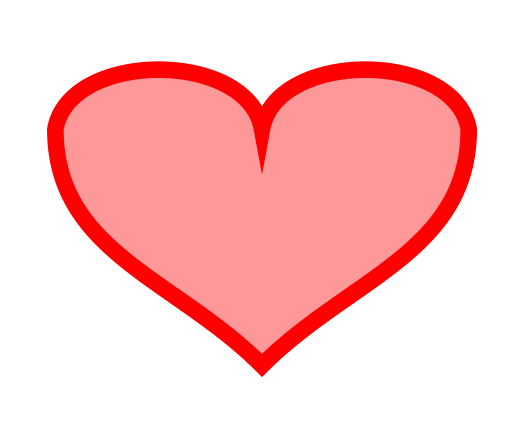

  • custom shapes (heart, star)

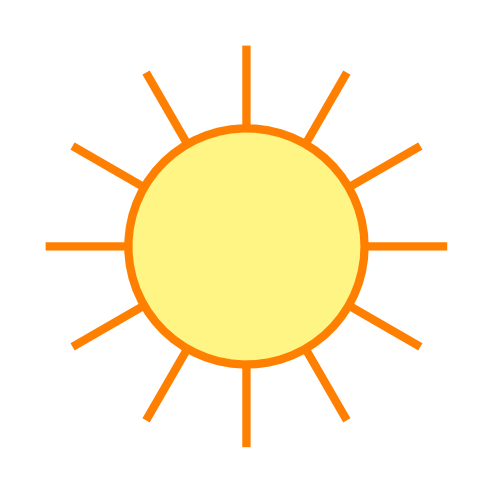

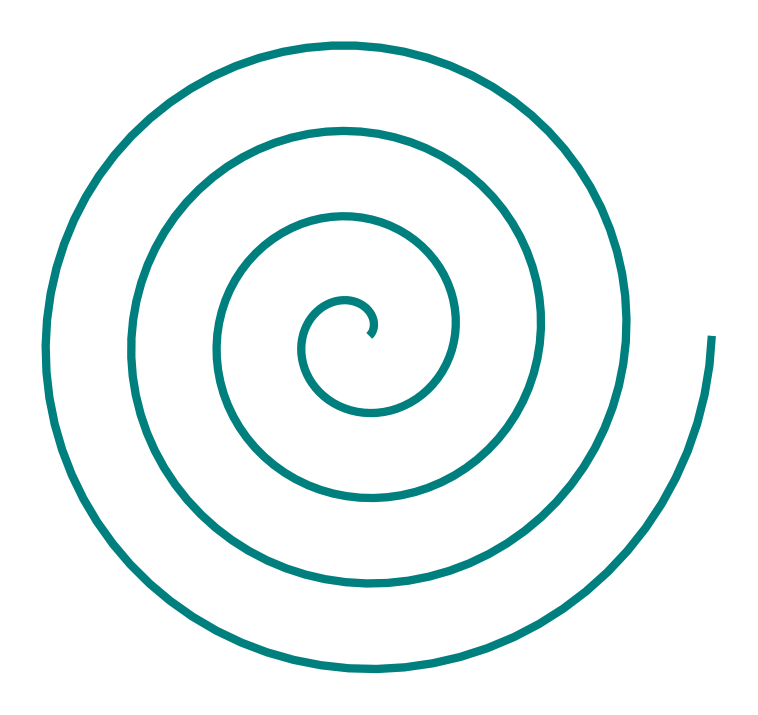

  • parametric curves with NumPy (spiral, sun)

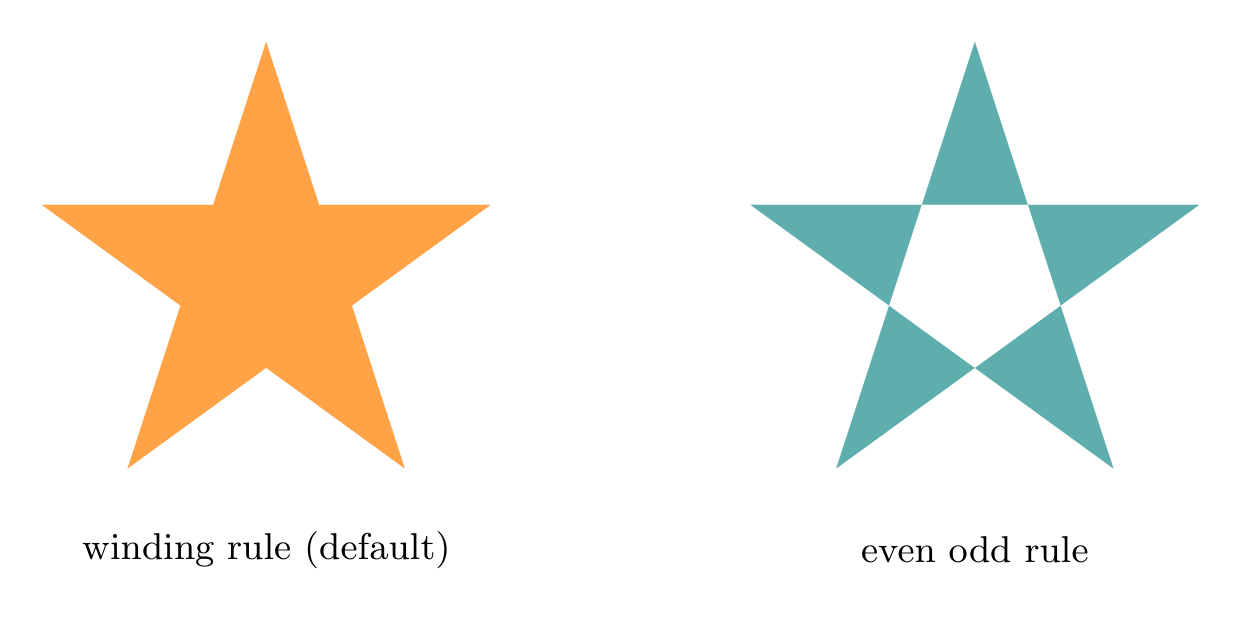

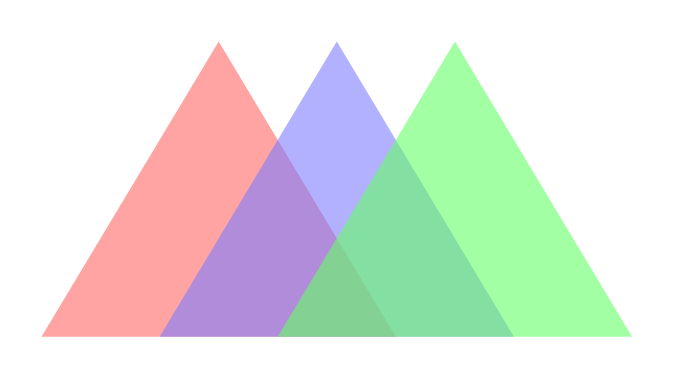

  • fill for stroke-free fills and even-odd rule

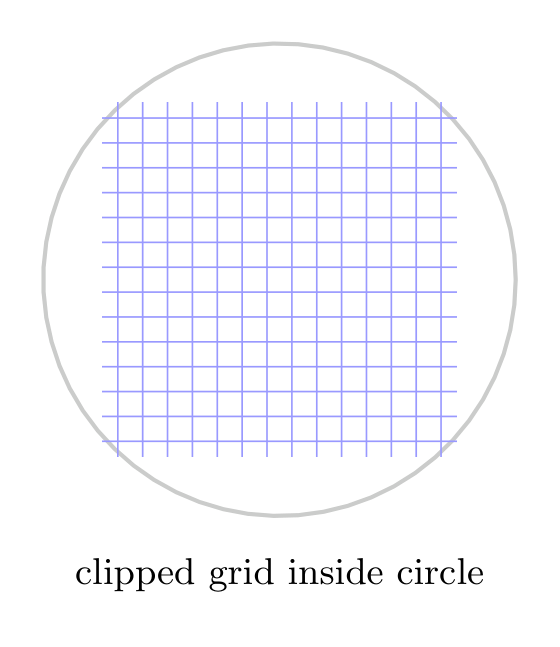

  • clip for clipping regions
  • path for invisible named paths and mid-path labels
import numpy as np


from tikzfigure import TikzFigure, arrows, styles, units

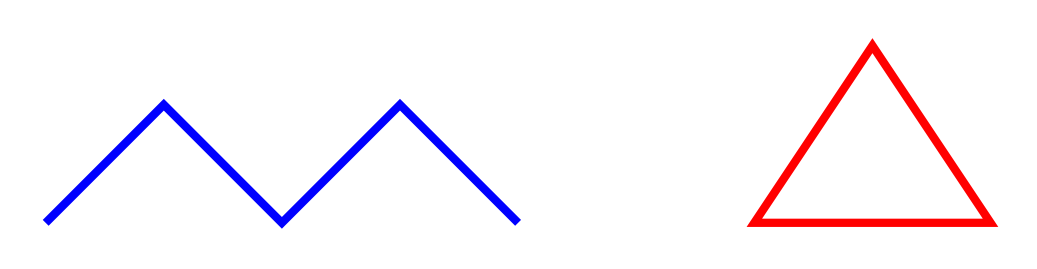

Open and closed coordinate paths

Section titled “Open and closed coordinate paths”

Pass a list of [x, y] pairs (or (x, y) tuples) to fig.draw(). Set cycle=True to close the path back to the starting point.

fig = TikzFigure()


# Open path - a zigzag
zigzag = [[0, 0], [1, 1], [2, 0], [3, 1], [4, 0]]
fig.draw(zigzag, line_width=2, color="blue")


# Closed path - a triangle
triangle = [[6, 0], [8, 0], [7, 1.5]]
fig.draw(
    triangle,
    cycle=True,
    line_width=2,
    color="red",
)


fig.show()

Show Tikz code
print(fig)
% --------------------------------------------- %
% Tikzfigure generated by tikzfigure v0.3.1     %
% https://github.com/max-models/tikzfigure      %
% --------------------------------------------- %
\begin{tikzpicture}
    \draw[color=blue, line width=2] (0, 0)
        to
        (1, 1)
        to
        (2, 0)
        to
        (3, 1)
        to
        (4, 0);
    \draw[color=red, line width=2] (6, 0) to (8, 0) to (7, 1.5) -- cycle;
\end{tikzpicture}

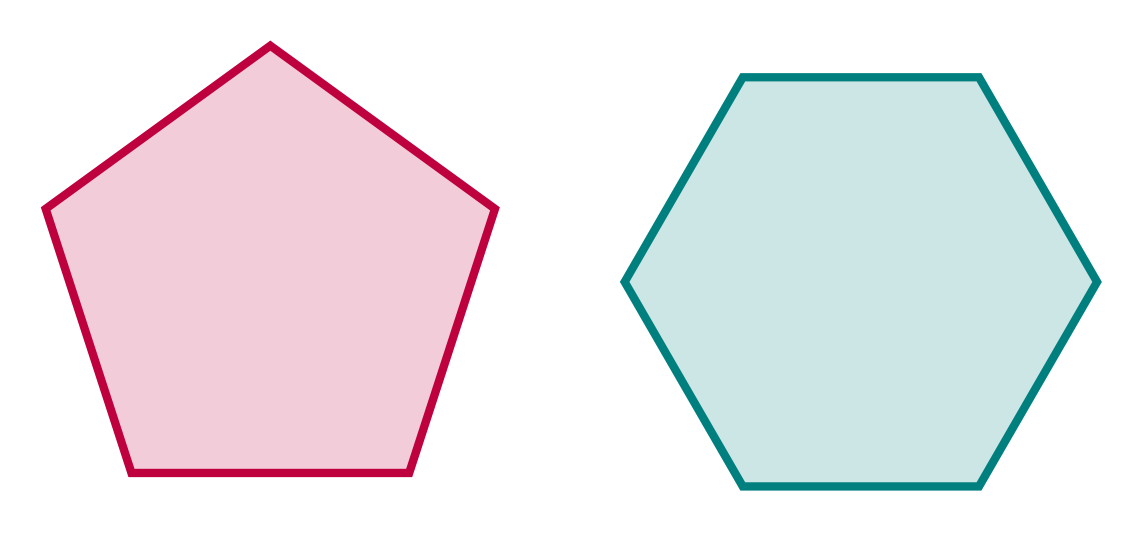

Filled shapes with filldraw

Section titled “Filled shapes with filldraw”

fig.filldraw() is shorthand for a closed path that is both drawn (outline) and filled. You can also use fig.draw(..., fill="color") for the same effect.

fig = TikzFigure()


# Pentagon via filldraw
angles = np.linspace(np.pi / 2, np.pi / 2 + 2 * np.pi, 6)[:-1]
pentagon = list(
    zip(
        np.cos(angles) * 2 + 2,
        np.sin(angles) * 2 + 2,
    ),
)
fig.filldraw(
    pentagon,
    cycle=True,
    line_width=2,
    color="purple",
    fill="purple!20",
)


# Same via draw(..., fill=...)
hexagon_angles = np.linspace(0, 2 * np.pi, 7)[:-1]
hexagon = list(
    zip(
        np.cos(hexagon_angles) * 2 + 7,
        np.sin(hexagon_angles) * 2 + 2,
    ),
)
fig.draw(
    hexagon,
    cycle=True,
    line_width=2,
    color="teal",
    fill="teal!20",
)


fig.show()

Show Tikz code
print(fig)
% --------------------------------------------- %
% Tikzfigure generated by tikzfigure v0.3.1     %
% https://github.com/max-models/tikzfigure      %
% --------------------------------------------- %
\begin{tikzpicture}
    \filldraw[color=purple, fill=purple!20, line width=2] (2.0, 4.0)
        to
        (0.09788696740969294, 2.618033988749895)
        to
        (0.8244294954150535, 0.3819660112501053)
        to
        (3.175570504584946, 0.3819660112501049)
        to
        (3.9021130325903073, 2.6180339887498945) -- cycle;
    \draw[color=teal, fill=teal!20, line width=2] (9.0, 2.0)
        to
        (8.0, 3.732050807568877)
        to
        (6.0, 3.7320508075688776)
        to
        (5.0, 2.0000000000000004)
        to
        (5.999999999999999, 0.26794919243112325)
        to
        (7.999999999999998, 0.2679491924311219) -- cycle;
\end{tikzpicture}

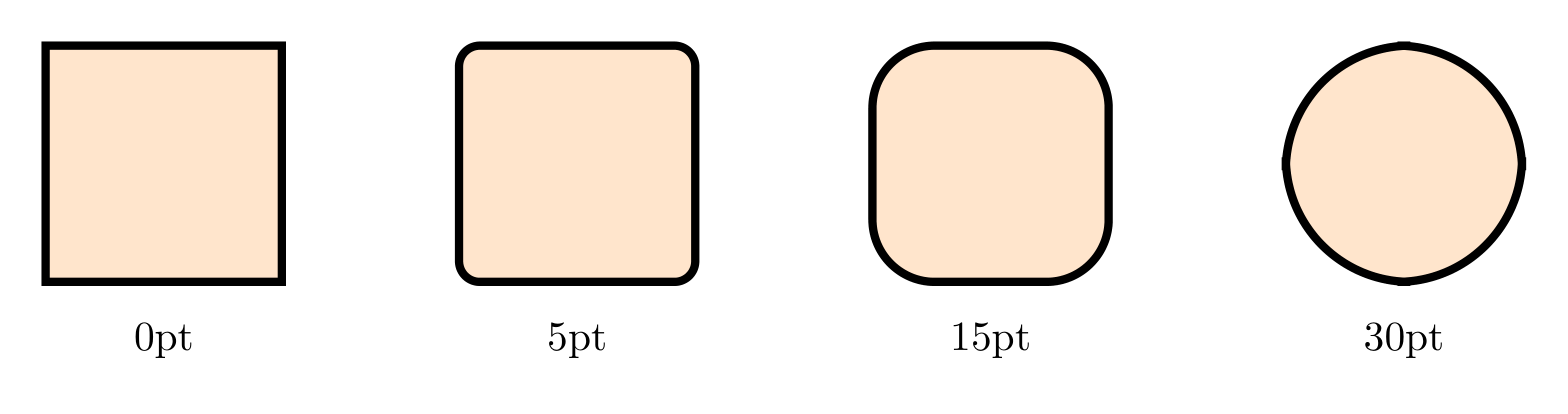

Rounded corners

Section titled “Rounded corners”

The rounded_corners parameter (in pt) smooths the corners of any path.

fig = TikzFigure()


# Same square, with increasing corner radius
for i, radius in enumerate([0, 5, 15, 30]):
    x0 = i * 3.5
    square = [[x0, 0], [x0 + 2, 0], [x0 + 2, 2], [x0, 2]]
    fig.draw(
        square,
        cycle=True,
        line_width=2,
        color="black",
        fill="orange!20",
        rounded_corners=f"{radius}pt",
    )
    fig.node(
        x0 + 1,
        -0.5,
        content=f"{radius}pt",
        draw="none",
    )


fig.show()

Show Tikz code
print(fig)
% --------------------------------------------- %
% Tikzfigure generated by tikzfigure v0.3.1     %
% https://github.com/max-models/tikzfigure      %
% --------------------------------------------- %
\begin{tikzpicture}
    \draw[color=black, fill=orange!20, line width=2, rounded corners=0pt] (0.0, 0)
        to
        (2.0, 0)
        to
        (2.0, 2)
        to
        (0.0, 2) -- cycle;
    \node[draw=none] (node0) at ({1.0}, {-0.5}) {0pt};
    \draw[color=black, fill=orange!20, line width=2, rounded corners=5pt] (3.5, 0)
        to
        (5.5, 0)
        to
        (5.5, 2)
        to
        (3.5, 2) -- cycle;
    \node[draw=none] (node1) at ({4.5}, {-0.5}) {5pt};
    \draw[color=black, fill=orange!20, line width=2, rounded corners=15pt] (7.0, 0)
        to
        (9.0, 0)
        to
        (9.0, 2)
        to
        (7.0, 2) -- cycle;
    \node[draw=none] (node2) at ({8.0}, {-0.5}) {15pt};
    \draw[color=black, fill=orange!20, line width=2, rounded corners=30pt] (10.5, 0)
        to
        (12.5, 0)
        to
        (12.5, 2)
        to
        (10.5, 2) -- cycle;
    \node[draw=none] (node3) at ({11.5}, {-0.5}) {30pt};
\end{tikzpicture}

Per-segment styling

Section titled “Per-segment styling”

segment_options accepts a list of per-connector option dicts, one for each to step in the path. Each dict uses keyword-style TikZ options (underscores become spaces) plus an optional "options" key for flag-style items like styles.dashed or arrows.forward.

Here four segments are given different colors and styles in a single draw call:

fig = TikzFigure()


waypoints = [[0, 0], [2, 2], [4, 0], [6, 2], [8, 0]]


fig.draw(
    waypoints,
    line_width=2,
    segment_options=[
        {"color": "red"},
        {"color": "blue", "options": [styles.dashed], "line_width": 1.5},
        {"color": "green!60!black", "line_width": 3},
        {"color": "purple", "options": [styles.dotted], "line_width": 2},
    ],
)


fig.show()

Show Tikz code
print(fig)
% --------------------------------------------- %
% Tikzfigure generated by tikzfigure v0.3.1     %
% https://github.com/max-models/tikzfigure      %
% --------------------------------------------- %
\begin{tikzpicture}
    \draw[line width=2] (0, 0)
        to[color=red]
        (2, 2)
        to[dashed, color=blue, line width=1.5]
        (4, 0)
        to[color=green!60!black, line width=3]
        (6, 2)
        to[dotted, color=purple, line width=2]
        (8, 0);
\end{tikzpicture}

Per-segment bending works the same way. Here three nodes are connected with arrows where each segment curves in a different direction:

fig = TikzFigure()


specs = [("src", 0, 1, "teal"), ("mid", 4, 3, "orange"), ("dst", 8, 1, "purple")]
for label, x, y, color in specs:
    fig.node(
        (x, y),
        label=label,
        shape="circle",
        fill=f"{color}!25",
        draw=f"{color}!70",
        minimum_size=1.0 * units.cm,
        content=label.upper(),
    )


fig.draw(
    ["src.center", "mid.center", "dst.center"],
    arrows=arrows.forward,
    options=[styles.thick],
    segment_options=[
        {"bend_left": 30},  # src → mid curves upward-left
        {"bend_right": 25},  # mid → dst curves downward-right
    ],
)


fig.show()

Show Tikz code
print(fig)
% --------------------------------------------- %
% Tikzfigure generated by tikzfigure v0.3.1     %
% https://github.com/max-models/tikzfigure      %
% --------------------------------------------- %
\begin{tikzpicture}
    \node[shape=circle, fill=teal!25, draw=teal!70, minimum size=1cm] (src) at ({0}, {1}) {SRC};
    \node[shape=circle, fill=orange!25, draw=orange!70, minimum size=1cm] (mid) at ({4}, {3}) {MID};
    \node[shape=circle, fill=purple!25, draw=purple!70, minimum size=1cm] (dst) at ({8}, {1}) {DST};
    \draw[thick, ->] (src.center) to[bend left=30] (mid.center) to[bend right=25] (dst.center);
\end{tikzpicture}

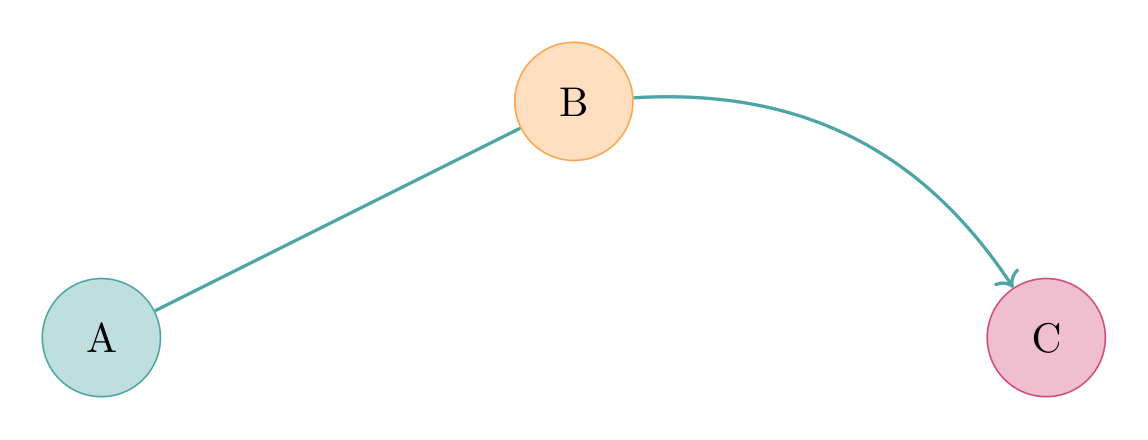

Fluent node chaining

Section titled “Fluent node chaining”

If you’re connecting named nodes, .to(...) is a concise alternative to building segment_options by hand. Options passed to .to(...) affect only that connector.

fig = TikzFigure()


A = fig.node(
    (0, 1),
    label="A",
    shape="circle",
    fill="teal!25",
    draw="teal!70",
    minimum_size=1.0 * units.cm,
    content="A",
)
B = fig.node(
    (4, 3),
    label="B",
    shape="circle",
    fill="orange!25",
    draw="orange!70",
    minimum_size="1cm",
    content="B",
)
C = fig.node(
    (8, 1),
    label="C",
    shape="circle",
    fill="purple!25",
    draw="purple!70",
    minimum_size="1cm",
    content="C",
)


fig.draw(
    A.to(B).to(C, options=styles.bend_left()),
    arrows=arrows.forward,
    options=[styles.thick],
    color="teal!70",
)


fig.show()

Show Tikz code
print(fig)
% --------------------------------------------- %
% Tikzfigure generated by tikzfigure v0.3.1     %
% https://github.com/max-models/tikzfigure      %
% --------------------------------------------- %
\begin{tikzpicture}
    \node[shape=circle, fill=teal!25, draw=teal!70, minimum size=1cm] (A) at ({0}, {1}) {A};
    \node[shape=circle, fill=orange!25, draw=orange!70, minimum size=1cm] (B) at ({4}, {3}) {B};
    \node[shape=circle, fill=purple!25, draw=purple!70, minimum size=1cm] (C) at ({8}, {1}) {C};
    \draw[thick, ->, color=teal!70] (A) to (B) to[bend left] (C);
\end{tikzpicture}

Arc segments fit into the same fluent API. Unlike .to(...), .arc(...) does not consume another waypoint — it appends a TikZ arc[...] operation at the current point, and you can keep chaining afterward:

fig = TikzFigure()


A = fig.node(
    (0, 0),
    label="A",
    shape="circle",
    fill="teal!25",
    draw="teal!70",
    minimum_size="1cm",
    content="A",
)
B = fig.node(
    (4, 0),
    label="B",
    shape="circle",
    fill="orange!25",
    draw="orange!70",
    minimum_size="1cm",
    content="B",
)
C = fig.node(
    (7, 1.5),
    label="C",
    shape="circle",
    fill="purple!25",
    draw="purple!70",
    minimum_size="1cm",
    content="C",
)


fig.draw(
    A.to(B)
    .arc(start_angle=-90, end_angle=90, radius="1.5cm")
    .to(C, options=styles.bend_right()),
    arrows=arrows.forward,
    options=[styles.thick],
    color="blue!70",
)


fig.show()

Show Tikz code
print(fig)
% --------------------------------------------- %
% Tikzfigure generated by tikzfigure v0.3.1     %
% https://github.com/max-models/tikzfigure      %
% --------------------------------------------- %
\begin{tikzpicture}
    \node[shape=circle, fill=teal!25, draw=teal!70, minimum size=1cm] (A) at ({0}, {0}) {A};
    \node[shape=circle, fill=orange!25, draw=orange!70, minimum size=1cm] (B) at ({4}, {0}) {B};
    \node[shape=circle, fill=purple!25, draw=purple!70, minimum size=1cm] (C) at ({7}, {1.5}) {C};
    \draw[thick, ->, color=blue!70] (A) to (B) arc[start angle=-90, end angle=90, radius=1.5cm] to[bend right] (C);
\end{tikzpicture}

Use "out" and "in" keys for explicit departure and arrival angles (in degrees). This gives precise control over how each segment enters and leaves its endpoints — useful when bend_left/bend_right doesn’t give you the exact shape you need:

fig = TikzFigure()


for label, x, y, color in [
    ("A", 0, 2, "blue"),
    ("B", 5, 4, "orange"),
    ("C", 10, 2, "purple"),
]:
    fig.node(
        (x, y),
        label=label,
        shape="circle",
        fill=f"{color}!20",
        draw=f"{color}!70",
        minimum_size="1.2cm",
        content=f"${label}$",
    )


fig.draw(
    ["A.center", "B.center", "C.center"],
    arrows=arrows.forward,
    options=[styles.thick],
    segment_options=[
        {"out": 45, "in": 195},  # A→B: leave at 45°, arrive at 195°
        {"out": -15, "in": 135},  # B→C: leave at -15°, arrive at 135°
    ],
)


fig.show()

Show Tikz code
print(fig)
% --------------------------------------------- %
% Tikzfigure generated by tikzfigure v0.3.1     %
% https://github.com/max-models/tikzfigure      %
% --------------------------------------------- %
\begin{tikzpicture}
    \node[shape=circle, fill=blue!20, draw=blue!70, minimum size=1.2cm] (A) at ({0}, {2}) {$A$};
    \node[shape=circle, fill=orange!20, draw=orange!70, minimum size=1.2cm] (B) at ({5}, {4}) {$B$};
    \node[shape=circle, fill=purple!20, draw=purple!70, minimum size=1.2cm] (C) at ({10}, {2}) {$C$};
    \draw[thick, ->] (A.center) to[out=45, in=195] (B.center) to[out=-15, in=135] (C.center);
\end{tikzpicture}

looseness scales how far the control handles extend, making the same bend either tighter (looseness < 1) or more exaggerated (looseness > 1). Here the two segments of the same symmetric path use opposite looseness values:

fig = TikzFigure()


for label, x, y in [("A", 0, 2), ("B", 5, 2), ("C", 10, 2)]:
    fig.node(
        (x, y),
        label=label,
        shape="circle",
        fill="gray!15",
        draw="gray!60",
        minimum_size="1cm",
        content=f"${label}$",
    )


fig.draw(
    ["A.center", "B.center", "C.center"],
    arrows=arrows.forward,
    options=[styles.thick],
    segment_options=[
        {"bend_left": 50, "looseness": 2.5},  # A→B: wide exaggerated arc
        {"bend_right": 50, "looseness": 0.5},  # B→C: tight compressed arc
    ],
)


fig.show()

Show Tikz code
print(fig)
% --------------------------------------------- %
% Tikzfigure generated by tikzfigure v0.3.1     %
% https://github.com/max-models/tikzfigure      %
% --------------------------------------------- %
\begin{tikzpicture}
    \node[shape=circle, fill=gray!15, draw=gray!60, minimum size=1cm] (A) at ({0}, {2}) {$A$};
    \node[shape=circle, fill=gray!15, draw=gray!60, minimum size=1cm] (B) at ({5}, {2}) {$B$};
    \node[shape=circle, fill=gray!15, draw=gray!60, minimum size=1cm] (C) at ({10}, {2}) {$C$};
    \draw[thick, ->] (A.center) to[bend left=50, looseness=2.5] (B.center) to[bend right=50, looseness=0.5] (C.center);
\end{tikzpicture}

All segment options can be combined freely. Here each segment gets its own color, line style, and curve geometry in a single draw call:

fig = TikzFigure()


for label, x, y, color in [
    ("A", 0, 0, "teal"),
    ("B", 4, 3, "red"),
    ("C", 8, 0, "blue"),
]:
    fig.node(
        (x, y),
        label=label,
        shape="circle",
        fill=f"{color}!20",
        draw=f"{color}!60",
        minimum_size="1.2cm",
        content=f"${label}$",
    )


fig.draw(
    ["A.center", "B.center", "C.center"],
    segment_options=[
        {  # A→B
            "options": [arrows.forward],
            "color": "teal!80",
            "line_width": 2,
            "out": 60,
            "in": 240,
        },
        {  # B→C
            "options": [arrows.forward, styles.dashed],
            "color": "red!70",
            "line_width": 1.5,
            "out": -60,
            "in": 120,
        },
    ],
)


fig.show()

Show Tikz code
print(fig)
% --------------------------------------------- %
% Tikzfigure generated by tikzfigure v0.3.1     %
% https://github.com/max-models/tikzfigure      %
% --------------------------------------------- %
\begin{tikzpicture}
    \node[shape=circle, fill=teal!20, draw=teal!60, minimum size=1.2cm] (A) at ({0}, {0}) {$A$};
    \node[shape=circle, fill=red!20, draw=red!60, minimum size=1.2cm] (B) at ({4}, {3}) {$B$};
    \node[shape=circle, fill=blue!20, draw=blue!60, minimum size=1.2cm] (C) at ({8}, {0}) {$C$};
    \draw (A.center) to[->, color=teal!80, line width=2, out=60, in=240] (B.center) to[->, dashed, color=red!70, line width=1.5, out=-60, in=120] (C.center);
\end{tikzpicture}

Node paths and .center anchors

Section titled “Node paths and .center anchors”

When you fill a closed path that goes through named nodes, TikZ routes to each node’s border by default. For circular nodes this means the filled area has indented corners — it doesn’t look like a triangle.

Appending .center to a node label in the path list routes the segment through the node’s geometric center instead. The path then bounds a proper filled polygon.

fig = TikzFigure()


node_specs = [
    ("top", 3, 4, "blue", r"$v_1$"),
    ("bl", 0, 0, "blue", r"$v_2$"),
    ("br", 6, 0, "blue", r"$v_3$"),
]
for label, x, y, color, text in node_specs:
    fig.node(
        (x, y),
        label=label,
        shape="circle",
        draw=f"{color}!60",
        fill="white",
        minimum_size="1.4cm",
        content=text,
    )


# Border anchors: the fill "leaks" under the node circles
fig.draw(
    ["top", "bl", "br"],
    cycle=True,
    fill="red!25",
    draw="red!60",
    line_width=1,
    fill_opacity=0.6,
)


# .center anchors: fills the exact triangle spanned by node centres
fig.draw(
    ["top.center", "bl.center", "br.center"],
    cycle=True,
    fill="blue!30",
    draw="blue!70",
    line_width=1.5,
    fill_opacity=0.7,
)


# Labels outside the shapes
fig.node(
    (7.5, 2),
    content=r"\textcolor{red!60}{border anchors}",
    draw="none",
    anchor="west",
    font=r"\small",
)
fig.node(
    (7.5, 1),
    content=r"\textcolor{blue!70}{.center anchors}",
    draw="none",
    anchor="west",
    font=r"\small",
)


fig.show()

Show Tikz code
print(fig)
% --------------------------------------------- %
% Tikzfigure generated by tikzfigure v0.3.1     %
% https://github.com/max-models/tikzfigure      %
% --------------------------------------------- %
\begin{tikzpicture}
    \node[shape=circle, fill=white, draw=blue!60, minimum size=1.4cm] (top) at ({3}, {4}) {$v_1$};
    \node[shape=circle, fill=white, draw=blue!60, minimum size=1.4cm] (bl) at ({0}, {0}) {$v_2$};
    \node[shape=circle, fill=white, draw=blue!60, minimum size=1.4cm] (br) at ({6}, {0}) {$v_3$};
    \draw[fill=red!25, draw=red!60, fill opacity=0.6, line width=1] (top) to (bl) to (br) -- cycle;
    \draw[fill=blue!30, draw=blue!70, fill opacity=0.7, line width=1.5] (top.center) to (bl.center) to (br.center) -- cycle;
    \node[draw=none, font=\small, anchor=west] (node3) at ({7.5}, {2}) {\textcolor{red!60}{border anchors}};
    \node[draw=none, font=\small, anchor=west] (node4) at ({7.5}, {1}) {\textcolor{blue!70}{.center anchors}};
\end{tikzpicture}

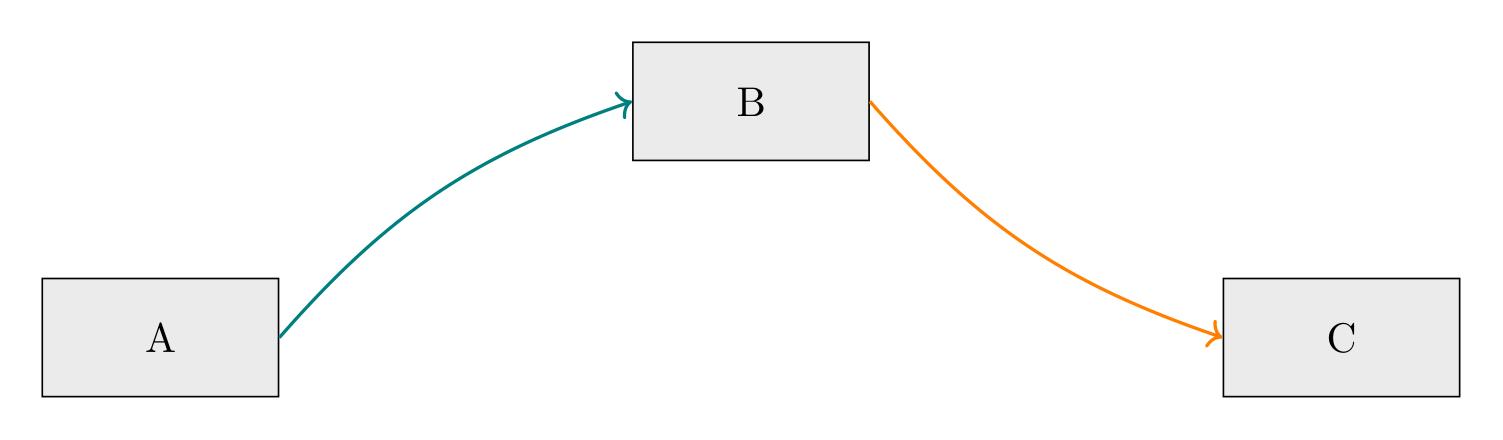

You can mix anchors: only the nodes that need a specific anchor require the dot suffix. Any TikZ anchor string works — "north", "south east", "west", etc.

fig = TikzFigure()


fig.node(
    (0, 0),
    label="A",
    shape="rectangle",
    draw="black",
    fill="gray!15",
    minimum_width="2cm",
    minimum_height="1cm",
    content="A",
)
fig.node(
    (5, 2),
    label="B",
    shape="rectangle",
    draw="black",
    fill="gray!15",
    minimum_width="2cm",
    minimum_height="1cm",
    content="B",
)
fig.node(
    (10, 0),
    label="C",
    shape="rectangle",
    draw="black",
    fill="gray!15",
    minimum_width="2cm",
    minimum_height="1cm",
    content="C",
)


# Connect from the east side of A, enter B from the west, leave from east, arrive at C.west
fig.draw(
    ["A.east", "B.west"],
    arrows=arrows.forward,
    options=[styles.thick],
    color="teal",
    segment_options=[{"bend_left": 15}],
)
fig.draw(
    ["B.east", "C.west"],
    arrows=arrows.forward,
    options=[styles.thick],
    color="orange",
    segment_options=[{"bend_right": 15}],
)


fig.show()

Show Tikz code
print(fig)
% --------------------------------------------- %
% Tikzfigure generated by tikzfigure v0.3.1     %
% https://github.com/max-models/tikzfigure      %
% --------------------------------------------- %
\begin{tikzpicture}
    \node[shape=rectangle, fill=gray!15, draw=black, minimum width=2cm, minimum height=1cm] (A) at ({0}, {0}) {A};
    \node[shape=rectangle, fill=gray!15, draw=black, minimum width=2cm, minimum height=1cm] (B) at ({5}, {2}) {B};
    \node[shape=rectangle, fill=gray!15, draw=black, minimum width=2cm, minimum height=1cm] (C) at ({10}, {0}) {C};
    \draw[thick, ->, color=teal] (A.east) to[bend left=15] (B.west);
    \draw[thick, ->, color=orange] (B.east) to[bend right=15] (C.west);
\end{tikzpicture}

Heart shape

Section titled “Heart shape”

A heart with circular lobes drawn by fig.arc() and a pointed bottom built from a chained path.

width, height = 1.75, 2.0


fig = TikzFigure()


fig.colorlet("lightred", "red!40!white")


A = fig.node(-width, height)
B = fig.node((0, 0))
C = fig.node(width, height)
D = fig.node(0, height)


fig.draw(
    A.to(B, options=["out=-90, in=135"])
    .to(C, options=["out=45, in=-90"])
    .to(D, options=["in=80, out=100"])
    .to(A, options=["in=80, out=100"]),
    color="red",
    line_width=4,
    cycle=True,
    center=True,
    fill="lightred",
)


fig.show()

Show Tikz code
print(fig)
% --------------------------------------------- %
% Tikzfigure generated by tikzfigure v0.3.1     %
% https://github.com/max-models/tikzfigure      %
% --------------------------------------------- %
\begin{tikzpicture}
    \colorlet{lightred}{red!40!white}
    \node (node0) at ({-1.75}, {2.0}) {};
    \node (node1) at ({0}, {0}) {};
    \node (node2) at ({1.75}, {2.0}) {};
    \node (node3) at ({0}, {2.0}) {};
    \draw[color=red, fill=lightred, line width=4] (node0.center)
        to[out=-90, in=135]
        (node1.center)
        to[out=45, in=-90]
        (node2.center)
        to[in=80, out=100]
        (node3.center)
        to[in=80, out=100]
        (node0.center) -- cycle;
\end{tikzpicture}

Star shape

Section titled “Star shape”

A five-pointed star drawn from six points (the last one closes back to the first).

fig = TikzFigure()


star = [[0, 0], [1, 2.5], [2, 0], [-0.5, 1.5], [2.5, 1.5], [0, 0]]


fig.draw(
    star,
    line_width=3,
    cycle=True,
    color="gold",
    fill="yellow!50!white",
)


fig.show()
print(fig)

% --------------------------------------------- %
% Tikzfigure generated by tikzfigure v0.3.1     %
% https://github.com/max-models/tikzfigure      %
% --------------------------------------------- %
\begin{tikzpicture}
    \draw[color=gold, fill=yellow!50!white, line width=3] (0, 0)
        to
        (1, 2.5)
        to
        (2, 0)
        to
        (-0.5, 1.5)
        to
        (2.5, 1.5)
        to
        (0, 0) -- cycle;
\end{tikzpicture}
Show Tikz code
print(fig)
% --------------------------------------------- %
% Tikzfigure generated by tikzfigure v0.3.1     %
% https://github.com/max-models/tikzfigure      %
% --------------------------------------------- %
\begin{tikzpicture}
    \draw[color=gold, fill=yellow!50!white, line width=3] (0, 0)
        to
        (1, 2.5)
        to
        (2, 0)
        to
        (-0.5, 1.5)
        to
        (2.5, 1.5)
        to
        (0, 0) -- cycle;
\end{tikzpicture}

Parametric curves with NumPy

Section titled “Parametric curves with NumPy”

Any iterable of (x, y) pairs works as a path, so NumPy arrays plug in naturally for smooth parametric curves.

fig = TikzFigure()


# Spiral
N = 300
theta = np.linspace(0, 8 * np.pi, N)
r = np.linspace(0.1, 3, N)
spiral = list(
    zip(r * np.cos(theta) + 4, r * np.sin(theta) + 4),
)
fig.draw(spiral, line_width=2, color="teal")


fig.show()

Show Tikz code
print(fig)
% --------------------------------------------- %
% Tikzfigure generated by tikzfigure v0.3.1     %
% https://github.com/max-models/tikzfigure      %
% --------------------------------------------- %
\begin{tikzpicture}
    \draw[color=teal, line width=2] (4.1, 4.0)
        to
        (4.109311690604932, 4.009210003491806)
        to
        (4.117714771684789, 4.0199778210498645)
        to
        (4.125014140190605, 4.0322102091087375)
        to
        (4.1310244108487, 4.0457922445851455)
        to
        (4.135572170308709, 4.060588337957058)
        to
        (4.138498126494149, 4.076443470909478)
        to
        (4.139659131447931, 4.093184647828918)
        to
        (4.138930057047688, 4.110622548377246)
        to
        (4.136205504238648, 4.1285533664322065)
        to
        (4.131401327884473, 4.146760818863925)
        to
        (4.1244559609566736, 4.16501830594048)
        to
        (4.115331523557323, 4.183091203636362)
        to
        (4.1040147041826955, 4.200739266769233)
        to
        (4.090517402670937, 4.217719120725341)
        to
        (4.074877126417452, 4.233786818563121)
        to
        (4.057157133669126, 4.248700439517244)
        to
        (4.037446320003529, 4.262222704369247)
        to
        (4.015858846442181, 4.274123582811634)
        to
        (3.992533510017395, 4.2841828678139935)
        to
        (3.9676328599896475, 4.292192692104246)
        to
        (3.941342065276122, 4.297959962205803)
        to
        (3.9138675409802377, 4.30130868602048)
        to
        (3.885435344186258, 4.302082170713749)
        to
        (3.8562893513822503, 4.300145068637881)
        to
        (3.8266892319792523, 4.295385250212327)
        to
        (3.7969082343856337, 4.287715484060199)
        to
        (3.7672308029553765, 4.277074906264027)
        to
        (3.737950045840418, 4.263430262340699)
        to
        (3.7093650753245533, 4.246776907430545)
        to
        (3.681778243585305, 4.227139552233507)
        to
        (3.6554922980075863, 4.204572744389498)
        to
        (3.630807481147599, 4.17916107727256)
        to
        (3.608018601207345, 4.151019120530304)
        to
        (3.587412099421529, 4.120291069131659)
        to
        (3.569263141073152, 4.087150110166676)
        to
        (3.553832756937631, 4.051797509150986)
        to
        (3.5413650618053008, 4.014461420103296)
        to
        (3.5320845763484034, 3.9753954261652082)
        to
        (3.5261936779826244, 3.9348768199974473)
        to
        (3.52387020552851, 3.893204635593605)
        to
        (3.5252652414101338, 3.85069744548097)
        to
        (3.530501093844663, 3.8076909395072507)
        to
        (3.5396694999861733, 3.764535303522364)
        to
        (3.5528300693013968, 3.7215924182369275)
        to
        (3.570008984586681, 3.679232900355887)
        to
        (3.59119797599886, 3.637833009730027)
        to
        (3.6163535812837715, 3.5977714477247242)
        to
        (3.64539670306219, 3.559426073260176)
        to
        (3.678212471592496, 3.5231705640183164)
        to
        (3.7146504188920964, 3.4893710511280034)
        to
        (3.75452496748613, 3.4583827562230924)
        to
        (3.7976162343836215, 3.4305466601108)
        to
        (3.8436711481800505, 3.4061862323852834)
        to
        (3.89240487447371, 3.385604251170749)
        to
        (3.9435025420838534, 3.3690797417786618)
        to
        (3.99662125989433, 3.3568650624159764)
        to
        (4.051392411539689, 3.3491831641889314)
        to
        (4.107424212624047, 3.3462250515150984)
        to
        (4.164304512738048, 3.348147467692402)
        to
        (4.2216038222373165, 3.3550708287869453)
        to
        (4.278878541587029, 3.367077427202888)
        to
        (4.3356743690811115, 3.384209924300377)
        to
        (4.391529860928941, 3.4064701492463185)
        to
        (4.445980116084311, 3.433818218934088)
        to
        (4.4985605567858, 3.466171991309892)
        to
        (4.548810774598426, 3.5034068618148217)
        to
        (4.596278410805294, 3.545355909913034)
        to
        (4.640523039304923, 3.591810399849669)
        to
        (4.681120019733238, 3.642520636889409)
        to
        (4.717664288354684, 3.6971971773512813)
        to
        (4.749774054358706, 3.755512387801085)
        to
        (4.777094369557643, 3.8171023458137556)
        to
        (4.799300540109522, 3.8815690717983866)
        to
        (4.81610134978189, 3.948483078512567)
        to
        (4.827242065425743, 4.017386222104297)
        to
        (4.832507196735177, 4.087794835832393)
        to
        (4.831722984019365, 4.159203125053068)
        to
        (4.824759589597898, 4.23108679964319)
        to
        (4.8115329705354135, 4.302906917780902)
        to
        (4.792006412741653, 4.374113912941549)
        to
        (4.766191708962131, 4.444151774109996)
        to
        (4.734149965853832, 4.5124623475763475)
        to
        (4.695992028160028, 4.57848972728637)
        to
        (4.6518785109469265, 4.641684699574141)
        to
        (4.6020194339200575, 4.701509207224346)
        to
        (4.546673454976266, 4.7574407972049935)
        to
        (4.486146703343656, 4.808977016085644)
        to
        (4.420791215891436, 4.855639717117026)
        to
        (4.351002983428912, 4.896979243198253)
        to
        (4.277219617031749, 4.932578450498688)
        to
        (4.19991764760824, 4.962056538331326)
        to
        (4.11960947502259, 4.985072651989608)
        to
        (4.036839986100817, 5.001329226653805)
        to
        (3.9521828637325687, 5.010575042138111)
        to
        (3.8662366120248435, 5.012607960174699)
        to
        (3.779620325037803, 5.007277318103636)
        to
        (3.692969229016575, 4.994485955242612)
        to
        (3.6069300302050586, 4.974191850831307)
        to
        (3.5221561022690473, 4.94640935526309)
        to
        (3.439302549048723, 4.911209999311179)
        to
        (3.359021179788755, 4.868722869205431)
        to
        (3.2819554351440305, 4.819134538696144)
        to
        (3.2087353031184613, 4.762688552627862)
        to
        (3.139972264653796, 4.699684460013668)
        to
        (3.076254308837327, 4.630476398121851)
        to
        (3.018141057637055, 4.555471232635357)
        to
        (2.9661590396973487, 4.475126262491855)
        to
        (2.9207971520374687, 4.389946501530993)
        to
        (2.8825023474917533, 4.300481552537282)
        to
        (2.851675584418567, 4.207322092644332)
        to
        (2.8286680735926204, 4.111095992331384)
        to
        (2.813777855291645, 4.012464093369789)
        to
        (2.8072467374057073, 3.9121156740388905)
        to
        (2.809257622950045, 3.810763632703469)
        to
        (2.8199322526667983, 3.7091394234043524)
        to
        (2.8393293854759567, 3.6079877794383437)
        to
        (2.867443436401962, 3.5080612629724683)
        to
        (2.9042035882820656, 3.410114680532287)
        to
        (2.949473390079797, 3.3148994057078722)
        to
        (3.0030508510074116, 3.223157651619393)
        to
        (3.064669035931683, 3.135616736565021)
        to
        (3.133997163725941, 3.052983386826855)
        to
        (3.210642206366598, 2.9759381208284923)
        to
        (3.2941509826840827, 2.9051297587157197)
        to
        (3.3840127367960586, 2.841170100967281)
        to
        (3.479662187405185, 2.7846288188360426)
        to
        (3.5804830303646242, 2.736028598275184)
        to
        (3.6858118732319785, 2.695840577524777)
        to
        (3.794942576975589, 2.6644801167296674)
        to
        (3.907130976595035, 2.642302935840701)
        to
        (4.021599949197854, 2.629601654631389)
        to
        (4.137544795063551, 2.6266027659570037)
        to
        (4.2541388944491745, 2.6334640704108514)
        to
        (4.370539600371495, 2.650272597313588)
        to
        (4.485894325361342, 2.677043033528258)
        to
        (4.599346778245293, 2.713716677950733)
        to
        (4.710043305386844, 2.760160935708458)
        to
        (4.817139289528663, 2.816169362137587)
        to
        (4.9198055584324925, 2.881462262528791)
        to
        (5.01723475492435, 2.9556878494654244)
        to
        (5.108647619727661, 3.038423955355467)
        to
        (5.1932991386108025, 3.129180293512557)
        to
        (5.270484505890866, 3.2274012569038333)
        to
        (5.3395448572213455, 3.3324692394855493)
        to
        (5.39987272584499, 3.443708460924182)
        to
        (5.450917178107661, 3.560389271483003)
        to
        (5.492188585995968, 3.6817329099736207)
        to
        (5.5232629967687625, 3.8069166839595736)
        to
        (5.543786062385813, 3.9350795378845262)
        to
        (5.553476494379143, 4.065327971509704)
        to
        (5.5521290130438405, 4.196742268010697)
        to
        (5.5396167633237665, 4.3283829883284)
        to
        (5.515893173509349, 4.45929768591584)
        to
        (5.48099323682313, 4.58852779389349)
        to
        (5.435034200116007, 4.71511563483939)
        to
        (5.378215648203249, 4.8381115020136765)
        to
        (5.310818976803174, 4.956580759763882)
        to
        (5.233206251570355, 5.069610910189143)
        to
        (5.145818455305934, 5.176318572866428)
        to
        (5.049173130045745, 5.27585632456589)
        to
        (4.94386142533792, 5.367419346407922)
        to
        (4.83054456859037, 5.4502518268410185)
        to
        (4.709949777860205, 5.523653070143674)
        to
        (4.582865641837113, 5.5869832618686885)
        to
        (4.4501369960068535, 5.639668844744974)
        to
        (4.312659328036245, 5.681207461017641)
        to
        (4.171372749265032, 5.711172420026433)
        to
        (4.027255572792117, 5.729216652977327)
        to
        (3.8813175419744845, 5.735076120331373)
        to
        (3.734592756189446, 5.728572640995191)
        to
        (3.5881323434190353, 5.709616116523242)
        to
        (3.442996931576538, 5.678206127804898)
        to
        (3.300248972488229, 5.63443288617951)
        to
        (3.160944974050698, 5.578477525568268)
        to
        (3.0261276972899247, 5.510611726999158)
        to
        (2.896818375840332, 5.431196671796082)
        to
        (2.774009015730862, 5.34068132466941)
        to
        (2.6586548333043396, 5.239600052946015)
        to
        (2.5516668886029885, 5.128569593175321)
        to
        (2.453904970626774, 5.0082853813062025)
        to
        (2.366170789515964, 4.8795172675105825)
        to
        (2.289201528931133, 4.743104641495815)
        to
        (2.2236638097128614, 4.599950998762937)
        to
        (2.1701481133124405, 4.451017982695781)
        to
        (2.1291637105101398, 4.297318941572139)
        to
        (2.1011341375980677, 4.139912043539319)
        to
        (2.0863932585223552, 3.979892996261087)
        to
        (2.0851819474790103, 3.8183874212911357)
        to
        (2.0976454221666136, 3.656542936232665)
        to
        (2.123831253346704, 3.495521000378879)
        to
        (2.1636880715810953, 3.336488581772682)
        to
        (2.217064987038314, 3.1806097054556997)
        to
        (2.2837117331242442, 3.029036944080029)
        to
        (2.363279539432164, 2.8829029130167587)
        to
        (2.4553227341625026, 2.7433118326029042)
        to
        (2.5593010707722916, 2.611331220215308)
        to
        (2.6745827682179635, 2.4879837744423665)
        to
        (2.800448248793022, 2.374239512741631)
        to
        (2.9360945522743838, 2.271008222626178)
        to
        (3.0806403999176415, 2.179132284621581)
        to
        (3.2331318768215866, 2.099379922988141)
        to
        (3.3925486963544533, 2.0324389375228913)
        to
        (3.5578110057359242, 1.9789109666593916)
        to
        (3.7277866875358185, 1.9393063285901277)
        to
        (3.9012991078169086, 1.9140394832693013)
        to
        (4.0771352579474, 1.903425153938811)
        to
        (4.254054233768909, 1.9076751422856395)
        to
        (4.4307959928549225, 1.9268958665161247)
        to
        (4.606090328058412, 1.9610866465549486)
        to
        (4.7786659934469835, 2.0101387552799874)
        to
        (4.947259917078652, 2.073835249225859)
        to
        (5.110626433896721, 2.1518515865683385)
        to
        (5.267546471330576, 2.243757034479221)
        to
        (5.416836619989137, 2.349016862158332)
        to
        (5.557358022130611, 2.4669953100484694)
        to
        (5.688025011387385, 2.596959319962881)
        to
        (5.807813438516423, 2.7380830051463283)
        to
        (5.9157686197274435, 2.8894528336924914)
        to
        (6.0110128464039665, 3.050073493294648)
        to
        (6.0927523977629425, 3.218874400054573)
        to
        (6.16028400118028, 3.394716809056412)
        to
        (6.213000688522296, 3.5764014796672488)
        to
        (6.250397000843073, 3.7626768440903)
        to
        (6.272073498208538, 3.9522476236060213)
        to
        (6.277740536160172, 4.143783833223001)
        to
        (6.26722127540172, 4.335930112154659)
        to
        (6.24045389664671, 4.527315314666835)
        to
        (6.1974929981649804, 4.716562293429475)
        to
        (6.138510159373769, 4.902297805574112)
        to
        (6.0637936597917115, 5.083162470225092)
        to
        (5.9737473487696375, 5.257820705350955)
        to
        (5.86888866758644, 5.42497057138319)
        to
        (5.749845831706503, 5.5833534491796755)
        to
        (5.617354187192031, 5.731763480572074)
        to
        (5.472251761403154, 5.869056700929417)
        to
        (5.315474034155895, 5.994159794888779)
        to
        (5.148047961397109, 6.106078408639817)
        to
        (4.971085289152903, 6.203904954889749)
        to
        (4.785775200969006, 6.286825849862867)
        to
        (4.593376347246516, 6.354128125383507)
        to
        (4.395208309744601, 6.405205363229663)
        to
        (4.192642559034788, 6.439562903498765)
        to
        (3.987092966814221, 6.456822283667311)
        to
        (3.780005938684487, 6.456724870318043)
        to
        (3.5728502362484424, 6.439134651116232)
        to
        (3.367106560142872, 6.404040160501191)
        to
        (3.164256967886319, 6.351555518679143)
        to
        (2.96577420215894, 6.281920569815981)
        to
        (2.773111006328514, 6.195500111788119)
        to
        (2.5876895046812542, 6.092782216410311)
        to
        (2.4108907248996347, 5.974375645673798)
        to
        (2.2440443398469627, 5.84100637614803)
        to
        (2.088418704670728, 5.693513250276495)
        to
        (1.9452112636265038, 5.532842779783124)
        to
        (1.8155393988602846, 5.360043132752432)
        to
        (1.7004317906812538, 5.176257342106588)
        to
        (1.600820355625463, 4.982715779129724)
        to
        (1.5175328248738253, 4.780727941339094)
        to
        (1.451286021369198, 4.571673609331009)
        to
        (1.4026798893047498, 4.356993432195811)
        to
        (1.372192324560483, 4.138179005661769)
        to
        (1.360174849181094, 3.916762511256756)
        to
        (1.366849167153882, 3.6943059884358007)
        to
        (1.3923046326003976, 3.472390314782422)
        to
        (1.4364966550828666, 3.2526039720255535)
        to
        (1.4992460600911253, 3.036531677699588)
        to
        (1.5802394159649444, 2.8257429637930533)
        to
        (1.679030331568638, 2.6217807846680836)
        to
        (1.7950417220196457, 2.4261502368764734)
        to
        (1.9275690327309571, 2.240307473243073)
        to
        (2.0757844050100154, 2.0656488927313963)
        to
        (2.2387417595154053, 1.9035006861519488)
        to
        (2.4153827670582784, 1.7551088157278287)
        to
        (2.604543669598571, 1.6216295039056332)
        to
        (2.80496290787612, 1.5041203036082176)
        to
        (3.0152895059818836, 1.403531818388963)
        to
        (3.234092157361091, 1.3207001366887505)
        to
        (3.4598689512925773, 1.2563400396445843)
        to
        (3.6910576738488485, 1.2110390366841615)
        to
        (3.9260466127487543, 1.1852522774988081)
        to
        (4.163185791405042, 1.1792983829565347)
        to
        (4.400798553876146, 1.1933562311387504)
        to
        (4.637193419383466, 1.2274627280030441)
        to
        (4.870676122578959, 1.2815115852367405)
        to
        (5.099561753863689, 1.3552531207208278)
        to
        (5.3221869127838755, 1.448295089721869)
        to
        (5.5369217868798115, 1.5601045475228523)
        to
        (5.742182068343344, 1.690010736745803)
        to
        (5.9364406214553895, 1.8372089851632132)
        to
        (6.118238815025682, 2.000765592396273)
        to
        (6.286197435937275, 2.1796236766094577)
        to
        (6.439027102398422, 2.372609945187002)
        to
        (6.575538098609998, 2.578442346469836)
        to
        (6.694649556248553, 2.7957385529931558)
        to
        (6.795397912420222, 3.0230252203448638)
        to
        (6.876944578531459, 3.2587479598110862)
        to
        (6.938582759817475, 3.5012819574330707)
        to
        (6.979743371032608, 3.74894316701145)
        to
        (7.0, 3.999999999999997);
\end{tikzpicture}

Sun: circle core + radial rays

Section titled “Sun: circle core + radial rays”

A filled circle for the core, plus short line segments for rays at equal angles.

fig = TikzFigure()


cx, cy, R = 4, 4, 1.0  # center and core radius


# Core
theta = np.linspace(0, 2 * np.pi, 60)
core = list(
    zip(
        cx + R * np.cos(theta),
        cy + R * np.sin(theta),
    ),
)
fig.filldraw(
    core,
    cycle=True,
    line_width=2,
    color="orange",
    fill="yellow!60",
)


# Rays
for angle in np.linspace(
    0,
    2 * np.pi,
    12,
    endpoint=False,
):
    x0 = cx + R * np.cos(angle)
    y0 = cy + R * np.sin(angle)
    x1 = cx + (R + 0.7) * np.cos(angle)
    y1 = cy + (R + 0.7) * np.sin(angle)
    fig.draw(
        [(x0, y0), (x1, y1)],
        line_width=2,
        color="orange",
    )


fig.show()

Show Tikz code
print(fig)
% --------------------------------------------- %
% Tikzfigure generated by tikzfigure v0.3.1     %
% https://github.com/max-models/tikzfigure      %
% --------------------------------------------- %
\begin{tikzpicture}
    \filldraw[color=orange, fill=yellow!60, line width=2] (5.0, 4.0)
        to
        (4.994334800210137, 4.106293485647365)
        to
        (4.977403389817867, 4.211382623629624)
        to
        (4.949397608468381, 4.314076712021949)
        to
        (4.910634772854913, 4.413212185768378)
        to
        (4.861554081393806, 4.50766580033884)
        to
        (4.802711637930964, 4.596367358538501)
        to
        (4.734774150863068, 4.678311836269616)
        to
        (4.658511379065039, 4.752570769856138)
        to
        (4.574787410214407, 4.818302775908169)
        to
        (4.48455087033265, 4.874763084531962)
        to
        (4.388824175473321, 4.921311977870413)
        to
        (4.288691947339621, 4.957422038362005)
        to
        (4.185288724087115, 4.982684124592521)
        to
        (4.079786105553083, 4.9968120070307505)
        to
        (3.9733794785622254, 4.999645611123452)
        to
        (3.867274472716278, 4.991152831004007)
        to
        (3.7626733001288852, 4.97142989326471)
        to
        (3.66076113388197, 4.940700266671033)
        to
        (3.5626926795411444, 4.89931213017122)
        to
        (3.4695790918802576, 4.847734427889671)
        to
        (3.3824753850538083, 4.786551555802642)
        to
        (3.3023684788650156, 4.716456740298315)
        to
        (3.230166016570094, 4.6382441836448205)
        to
        (3.166686080917485, 4.552800065361193)
        to
        (3.1126479249434285, 4.461092501449326)
        to
        (3.068663822547662, 4.364160575252822)
        to
        (3.035232131185484, 4.2631025642275215)
        to
        (3.0127316452786554, 4.159063496019072)
        to
        (3.001417304323238, 4.053222174842179)
        to
        (3.001417304323238, 3.9467778251578216)
        to
        (3.0127316452786554, 3.8409365039809282)
        to
        (3.035232131185484, 3.736897435772479)
        to
        (3.0686638225476615, 3.635839424747178)
        to
        (3.1126479249434285, 3.5389074985506745)
        to
        (3.1666860809174846, 3.4471999346388067)
        to
        (3.2301660165700934, 3.3617558163551804)
        to
        (3.3023684788650147, 3.2835432597016854)
        to
        (3.382475385053808, 3.2134484441973576)
        to
        (3.4695790918802576, 3.152265572110329)
        to
        (3.5626926795411444, 3.1006878698287808)
        to
        (3.6607611338819694, 3.0592997333289667)
        to
        (3.762673300128885, 3.02857010673529)
        to
        (3.8672744727162778, 3.008847168995993)
        to
        (3.973379478562225, 3.0003543888765476)
        to
        (4.079786105553083, 3.0031879929692495)
        to
        (4.185288724087114, 3.017315875407479)
        to
        (4.28869194733962, 3.042577961637994)
        to
        (4.38882417547332, 3.0786880221295867)
        to
        (4.48455087033265, 3.1252369154680384)
        to
        (4.574787410214406, 3.1816972240918306)
        to
        (4.658511379065038, 3.2474292301438608)
        to
        (4.734774150863067, 3.3216881637303834)
        to
        (4.802711637930964, 3.403632641461498)
        to
        (4.861554081393806, 3.49233419966116)
        to
        (4.910634772854913, 3.586787814231622)
        to
        (4.949397608468381, 3.685923287978051)
        to
        (4.977403389817867, 3.7886173763703757)
        to
        (4.994334800210137, 3.8937065143526346)
        to
        (5.0, 3.9999999999999996) -- cycle;
    \draw[color=orange, line width=2] (5.0, 4.0) to (5.7, 4.0);
    \draw[color=orange, line width=2] (4.866025403784438, 4.5) to (5.472243186433546, 4.85);
    \draw[color=orange, line width=2] (4.5, 4.866025403784438) to (4.8500000000000005, 5.472243186433546);
    \draw[color=orange, line width=2] (4.0, 5.0) to (4.0, 5.7);
    \draw[color=orange, line width=2] (3.5, 4.866025403784438) to (3.1500000000000004, 5.472243186433546);
    \draw[color=orange, line width=2] (3.1339745962155616, 4.5) to (2.5277568135664543, 4.8500000000000005);
    \draw[color=orange, line width=2] (3.0, 4.0) to (2.3, 4.0);
    \draw[color=orange, line width=2] (3.133974596215561, 3.5000000000000004) to (2.5277568135664543, 3.1500000000000004);
    \draw[color=orange, line width=2] (3.4999999999999996, 3.1339745962155616) to (3.1499999999999995, 2.5277568135664548);
    \draw[color=orange, line width=2] (4.0, 3.0) to (3.9999999999999996, 2.3);
    \draw[color=orange, line width=2] (4.499999999999999, 3.1339745962155607) to (4.849999999999999, 2.5277568135664534);
    \draw[color=orange, line width=2] (4.866025403784438, 3.4999999999999996) to (5.472243186433545, 3.1499999999999995);
\end{tikzpicture}

Fill without stroke

Section titled “Fill without stroke”

fig.fill() fills a closed path without drawing any outline — the equivalent of \fill[...] in TikZ. Use it when you want pure flat colour with no border.

fig = TikzFigure()


# Three overlapping filled triangles — no outlines at all
triangles = [
    ([[1, 0], [4, 0], [2.5, 2.5]], "red!60"),
    ([[2, 0], [5, 0], [3.5, 2.5]], "blue!50"),
    ([[3, 0], [6, 0], [4.5, 2.5]], "green!60"),
]
for pts, color in triangles:
    fig.fill(
        pts,
        cycle=True,
        fill=color,
        fill_opacity=0.6,
    )


fig.show()

Show Tikz code
print(fig)
% --------------------------------------------- %
% Tikzfigure generated by tikzfigure v0.3.1     %
% https://github.com/max-models/tikzfigure      %
% --------------------------------------------- %
\begin{tikzpicture}
    \fill[fill=red!60, fill opacity=0.6] (1, 0) to (4, 0) to (2.5, 2.5) -- cycle;
    \fill[fill=blue!50, fill opacity=0.6] (2, 0) to (5, 0) to (3.5, 2.5) -- cycle;
    \fill[fill=green!60, fill opacity=0.6] (3, 0) to (6, 0) to (4.5, 2.5) -- cycle;
\end{tikzpicture}

The even_odd_rule flag corrects the fill for self-intersecting paths. Without it, TikZ fills the interior using the non-zero winding rule, which fills the overlapping centre region twice — visually it looks like a solid shape. With even_odd_rule=True the centre hole is punched out correctly.

fig = TikzFigure()


# A five-pointed star is self-intersecting
angles = np.linspace(np.pi / 2, np.pi / 2 + 4 * np.pi, 6)[:-1]
star_pts = list(
    zip(
        np.cos(angles) * 2 + 2,
        np.sin(angles) * 2 + 2,
    ),
)


# Default winding rule: centre is filled solid
fig.fill(
    star_pts,
    cycle=True,
    fill="orange!80",
    fill_opacity=0.9,
)
fig.node(
    (2, -0.3),
    content="winding rule (default)",
    draw="none",
    font=r"\small",
    anchor="center",
)


# Even-odd rule: centre is hollow
angles2 = np.linspace(np.pi / 2, np.pi / 2 + 4 * np.pi, 6)[:-1]
star_pts2 = list(
    zip(
        np.cos(angles2) * 2 + 8,
        np.sin(angles2) * 2 + 2,
    ),
)
fig.fill(
    star_pts2,
    cycle=True,
    fill="teal!70",
    fill_opacity=0.9,
    even_odd_rule=True,
)
fig.node(
    (8, -0.3),
    content="even odd rule",
    draw="none",
    font=r"\small",
    anchor="center",
)


fig.show()

Show Tikz code
print(fig)
% --------------------------------------------- %
% Tikzfigure generated by tikzfigure v0.3.1     %
% https://github.com/max-models/tikzfigure      %
% --------------------------------------------- %
\begin{tikzpicture}
    \fill[fill=orange!80, fill opacity=0.9] (2.0, 4.0)
        to
        (0.8244294954150535, 0.3819660112501053)
        to
        (3.9021130325903073, 2.6180339887498945)
        to
        (0.09788696740969316, 2.618033988749896)
        to
        (3.175570504584946, 0.38196601125010465) -- cycle;
    \node[draw=none, font=\small, anchor=center] (node0) at ({2}, {-0.3}) {winding rule (default)};
    \fill[even odd rule, fill=teal!70, fill opacity=0.9] (8.0, 4.0)
        to
        (6.824429495415053, 0.3819660112501053)
        to
        (9.902113032590307, 2.6180339887498945)
        to
        (6.097886967409693, 2.618033988749896)
        to
        (9.175570504584945, 0.38196601125010465) -- cycle;
    \node[draw=none, font=\small, anchor=center] (node1) at ({8}, {-0.3}) {even odd rule};
\end{tikzpicture}

Clip

Section titled “Clip”

fig.clip() installs a clipping path — all subsequent drawing is masked to the given boundary. Wrap the clip together with the clipped content inside a \begin{scope}...\end{scope} via fig.raw() so the clip doesn’t leak into the rest of the figure.

fig = TikzFigure()


# Draw a full circle for reference (unclipped)
fig.draw(
    list(
        zip(
            np.cos(np.linspace(0, 2 * np.pi, 60)) * 2 + 2,
            np.sin(np.linspace(0, 2 * np.pi, 60)) * 2 + 2,
        ),
    ),
    cycle=True,
    color="gray!40",
    line_width=1,
)


# Open a scope, clip to a rectangle, then draw a dense grid inside
fig.raw(r"\begin{scope}")
clip_rect = [[0.5, 0.5], [3.5, 0.5], [3.5, 3.5], [0.5, 3.5]]
fig.clip(clip_rect, cycle=True)


for i in np.linspace(0, 4, 20):
    fig.draw(
        [(0, i), (4, i)],
        color="blue!40",
        line_width=0.4,
    )
    fig.draw(
        [(i, 0), (i, 4)],
        color="blue!40",
        line_width=0.4,
    )


fig.raw(r"\end{scope}")


# Anything drawn after the scope is unclipped again
fig.node(
    (2, -0.5),
    content="clipped grid inside circle",
    draw="none",
    font=r"\small",
    anchor="center",
)


fig.show()

Show Tikz code
print(fig)
% --------------------------------------------- %
% Tikzfigure generated by tikzfigure v0.3.1     %
% https://github.com/max-models/tikzfigure      %
% --------------------------------------------- %
\begin{tikzpicture}
    \draw[color=gray!40, line width=1] (4.0, 2.0)
        to
        (3.988669600420274, 2.212586971294731)
        to
        (3.9548067796357333, 2.4227652472592487)
        to
        (3.8987952169367626, 2.6281534240438975)
        to
        (3.8212695457098267, 2.8264243715367563)
        to
        (3.723108162787612, 3.01533160067768)
        to
        (3.605423275861927, 3.192734717077003)
        to
        (3.4695483017261344, 3.356623672539232)
        to
        (3.3170227581300775, 3.5051415397122767)
        to
        (3.149574820428814, 3.636605551816338)
        to
        (2.9691017406653004, 3.7495261690639223)
        to
        (2.7776483509466416, 3.8426239557408257)
        to
        (2.5773838946792424, 3.9148440767240107)
        to
        (2.370577448174229, 3.9653682491850417)
        to
        (2.159572211106166, 3.9936240140615)
        to
        (1.9467589571244506, 3.9992912222469053)
        to
        (1.7345489454325562, 3.9823056620080144)
        to
        (1.5253466002577707, 3.9428597865294197)
        to
        (1.3215222677639398, 3.8814005333420667)
        to
        (1.1253853590822893, 3.7986242603424385)
        to
        (0.9391581837605152, 3.695468855779342)
        to
        (0.7649507701076164, 3.573103111605285)
        to
        (0.6047369577300308, 3.4329134805966306)
        to
        (0.4603320331401879, 3.2764883672896405)
        to
        (0.3333721618349703, 3.1056001307223875)
        to
        (0.22529584988685714, 2.9221850028986522)
        to
        (0.13732764509532336, 2.728321150505645)
        to
        (0.07046426237096814, 2.5262051284550426)
        to
        (0.02546329055731089, 2.3181269920381444)
        to
        (0.002834608646476111, 2.1064443496843577)
        to
        (0.002834608646476111, 1.893555650315643)
        to
        (0.02546329055731089, 1.6818730079618562)
        to
        (0.07046426237096792, 1.4737948715449578)
        to
        (0.13732764509532291, 1.2716788494943563)
        to
        (0.22529584988685647, 1.0778149971013489)
        to
        (0.33337216183496965, 0.8943998692776138)
        to
        (0.460332033140187, 0.7235116327103606)
        to
        (0.6047369577300299, 0.5670865194033705)
        to
        (0.7649507701076159, 0.42689688839471507)
        to
        (0.9391581837605147, 0.3045311442206582)
        to
        (1.1253853590822889, 0.20137573965756173)
        to
        (1.3215222677639389, 0.11859946665793353)
        to
        (1.5253466002577698, 0.05714021347058029)
        to
        (1.7345489454325553, 0.01769433799198583)
        to
        (1.9467589571244497, 0.000708777753094969)
        to
        (2.1595722111061653, 0.006375985938499529)
        to
        (2.3705774481742274, 0.03463175081495784)
        to
        (2.577383894679241, 0.08515592327598864)
        to
        (2.7776483509466403, 0.15737604425917362)
        to
        (2.969101740665299, 0.2504738309360768)
        to
        (3.1495748204288123, 0.36339444818366107)
        to
        (3.317022758130076, 0.49485846028772196)
        to
        (3.4695483017261335, 0.6433763274607667)
        to
        (3.6054232758619262, 0.8072652829229958)
        to
        (3.723108162787612, 0.98466839932232)
        to
        (3.8212695457098262, 1.1735756284632437)
        to
        (3.8987952169367626, 1.371846575956102)
        to
        (3.9548067796357333, 1.577234752740751)
        to
        (3.988669600420274, 1.7874130287052687)
        to
        (4.0, 1.9999999999999996) -- cycle;
    \begin{scope}
        \clip (0.5, 0.5)
            to
            (3.5, 0.5)
            to
            (3.5, 3.5)
            to
            (0.5, 3.5) -- cycle;
        \draw[color=blue!40, line width=0.4] (0, 0.0) to (4, 0.0);
        \draw[color=blue!40, line width=0.4] (0.0, 0) to (0.0, 4);
        \draw[color=blue!40, line width=0.4] (0, 0.21052631578947367) to (4, 0.21052631578947367);
        \draw[color=blue!40, line width=0.4] (0.21052631578947367, 0) to (0.21052631578947367, 4);
        \draw[color=blue!40, line width=0.4] (0, 0.42105263157894735) to (4, 0.42105263157894735);
        \draw[color=blue!40, line width=0.4] (0.42105263157894735, 0) to (0.42105263157894735, 4);
        \draw[color=blue!40, line width=0.4] (0, 0.631578947368421) to (4, 0.631578947368421);
        \draw[color=blue!40, line width=0.4] (0.631578947368421, 0) to (0.631578947368421, 4);
        \draw[color=blue!40, line width=0.4] (0, 0.8421052631578947) to (4, 0.8421052631578947);
        \draw[color=blue!40, line width=0.4] (0.8421052631578947, 0) to (0.8421052631578947, 4);
        \draw[color=blue!40, line width=0.4] (0, 1.0526315789473684) to (4, 1.0526315789473684);
        \draw[color=blue!40, line width=0.4] (1.0526315789473684, 0) to (1.0526315789473684, 4);
        \draw[color=blue!40, line width=0.4] (0, 1.263157894736842) to (4, 1.263157894736842);
        \draw[color=blue!40, line width=0.4] (1.263157894736842, 0) to (1.263157894736842, 4);
        \draw[color=blue!40, line width=0.4] (0, 1.4736842105263157) to (4, 1.4736842105263157);
        \draw[color=blue!40, line width=0.4] (1.4736842105263157, 0) to (1.4736842105263157, 4);
        \draw[color=blue!40, line width=0.4] (0, 1.6842105263157894) to (4, 1.6842105263157894);
        \draw[color=blue!40, line width=0.4] (1.6842105263157894, 0) to (1.6842105263157894, 4);
        \draw[color=blue!40, line width=0.4] (0, 1.894736842105263) to (4, 1.894736842105263);
        \draw[color=blue!40, line width=0.4] (1.894736842105263, 0) to (1.894736842105263, 4);
        \draw[color=blue!40, line width=0.4] (0, 2.1052631578947367) to (4, 2.1052631578947367);
        \draw[color=blue!40, line width=0.4] (2.1052631578947367, 0) to (2.1052631578947367, 4);
        \draw[color=blue!40, line width=0.4] (0, 2.3157894736842106) to (4, 2.3157894736842106);
        \draw[color=blue!40, line width=0.4] (2.3157894736842106, 0) to (2.3157894736842106, 4);
        \draw[color=blue!40, line width=0.4] (0, 2.526315789473684) to (4, 2.526315789473684);
        \draw[color=blue!40, line width=0.4] (2.526315789473684, 0) to (2.526315789473684, 4);
        \draw[color=blue!40, line width=0.4] (0, 2.7368421052631575) to (4, 2.7368421052631575);
        \draw[color=blue!40, line width=0.4] (2.7368421052631575, 0) to (2.7368421052631575, 4);
        \draw[color=blue!40, line width=0.4] (0, 2.9473684210526314) to (4, 2.9473684210526314);
        \draw[color=blue!40, line width=0.4] (2.9473684210526314, 0) to (2.9473684210526314, 4);
        \draw[color=blue!40, line width=0.4] (0, 3.1578947368421053) to (4, 3.1578947368421053);
        \draw[color=blue!40, line width=0.4] (3.1578947368421053, 0) to (3.1578947368421053, 4);
        \draw[color=blue!40, line width=0.4] (0, 3.3684210526315788) to (4, 3.3684210526315788);
        \draw[color=blue!40, line width=0.4] (3.3684210526315788, 0) to (3.3684210526315788, 4);
        \draw[color=blue!40, line width=0.4] (0, 3.578947368421052) to (4, 3.578947368421052);
        \draw[color=blue!40, line width=0.4] (3.578947368421052, 0) to (3.578947368421052, 4);
        \draw[color=blue!40, line width=0.4] (0, 3.789473684210526) to (4, 3.789473684210526);
        \draw[color=blue!40, line width=0.4] (3.789473684210526, 0) to (3.789473684210526, 4);
        \draw[color=blue!40, line width=0.4] (0, 4.0) to (4, 4.0);
        \draw[color=blue!40, line width=0.4] (4.0, 0) to (4.0, 4);
    \end{scope}
    \node[draw=none, font=\small, anchor=center] (node0) at ({2}, {-0.5}) {clipped grid inside circle};
\end{tikzpicture}

Invisible path

Section titled “Invisible path”

fig.path() traces a path without drawing or filling anything. It has two common uses:

Named paths — register a path under a name so the intersections TikZ library can compute where two paths cross.

Mid-path labels — place a text node at a specific position along an invisible connector using segment_options with a "node" key.

fig = TikzFigure()


# Three nodes
for label, x, y, color in [
    ("A", 0, 0, "teal"),
    ("B", 5, 3, "orange"),
    ("C", 10, 0, "purple"),
]:
    fig.node(
        (x, y),
        label=label,
        shape="circle",
        fill=f"{color}!20",
        draw=f"{color}!70",
        minimum_size="1.2cm",
        content=f"${label}$",
    )


# Visible arrows
fig.draw(
    ["A.center", "B.center"],
    arrows=arrows.forward,
    options=[styles.thick],
    color="teal!70",
    segment_options=[{"bend_left": 20}],
)
fig.draw(
    ["B.center", "C.center"],
    arrows=arrows.forward,
    options=[styles.thick],
    color="orange!80",
    segment_options=[{"bend_right": 20}],
)


# Invisible paths with mid-path labels
fig.path(
    ["A.center", "B.center"],
    segment_options=[
        {
            "node": {
                "content": r"$e_1$",
                "above": True,
                "sloped": True,
                "font": r"\small",
            },
            "bend_left": 20,
        },
    ],
)
fig.path(
    ["B.center", "C.center"],
    segment_options=[
        {
            "node": {
                "content": r"$e_2$",
                "above": True,
                "sloped": True,
                "font": r"\small",
            },
            "bend_right": 20,
        },
    ],
)


fig.show()

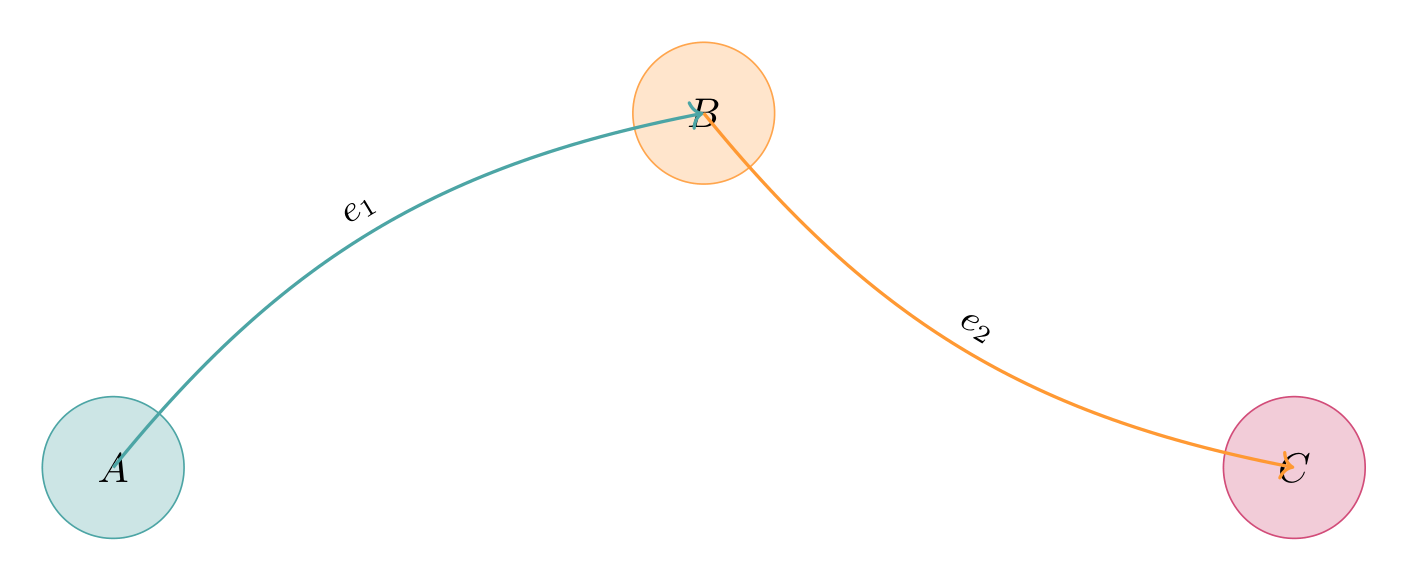

Show Tikz code
print(fig)
% --------------------------------------------- %
% Tikzfigure generated by tikzfigure v0.3.1     %
% https://github.com/max-models/tikzfigure      %
% --------------------------------------------- %
\begin{tikzpicture}
    \node[shape=circle, fill=teal!20, draw=teal!70, minimum size=1.2cm] (A) at ({0}, {0}) {$A$};
    \node[shape=circle, fill=orange!20, draw=orange!70, minimum size=1.2cm] (B) at ({5}, {3}) {$B$};
    \node[shape=circle, fill=purple!20, draw=purple!70, minimum size=1.2cm] (C) at ({10}, {0}) {$C$};
    \draw[thick, ->, color=teal!70] (A.center) to[bend left=20] (B.center);
    \draw[thick, ->, color=orange!80] (B.center) to[bend right=20] (C.center);
    \path (A.center) to[bend left=20] node[above, sloped, font=\small] {$e_1$} (B.center);
    \path (B.center) to[bend right=20] node[above, sloped, font=\small] {$e_2$} (C.center);
\end{tikzpicture}
