Quickstart

Requirements: Python 3.9+, a LaTeX distribution with pdflatex

pip install tikzfigure

from tikzfigure import TikzFigure

fig = TikzFigure()
a = fig.node(x = 0, y = 0, content="A", shape="circle", fill="cyan!40")
b = fig.node(x = 3, y = 0, content="B", shape="circle", fill="cyan!40")
c = fig.node(x = 0, y = -2, content="C", shape="circle", fill="cyan!40")

fig.draw([a, b], arrows="->")
fig.draw([b, c], arrows="->")

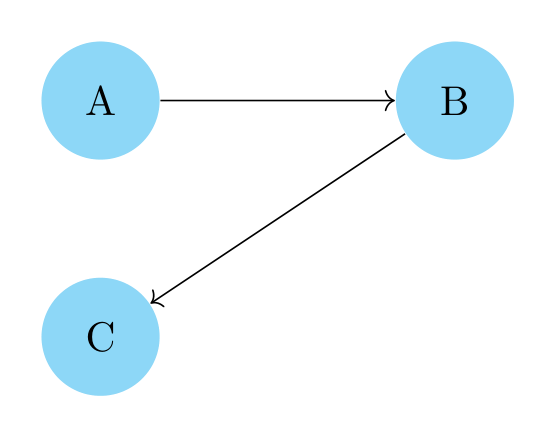

fig.show()

This is the generated Tikz code (str(fig)):

% --------------------------------------------- %
% Tikzfigure generated by tikzfigure v0.2.1     %
% https://github.com/max-models/tikzfigure      %
% --------------------------------------------- %
\begin{tikzpicture}
    \node[shape=circle, fill=cyan!40] (node0) at ({0}, {0}) {A};
    \node[shape=circle, fill=cyan!40] (node1) at ({3}, {0}) {B};
    \node[shape=circle, fill=cyan!40] (node2) at ({0}, {-2}) {C};
    \draw[arrows=->] (node0) to (node1);
    \draw[arrows=->] (node1) to (node2);
\end{tikzpicture}
