Tutorial 07 — TikZ Backend
TikZ is the de-facto standard for drawing in LaTeX documents.
maxplotlib can render your figures as native TikZ code via the
tikzfigure backend, which wraps the `tikzfigure <https://github.com/max-models/tikzfigure>`__ Python package.This tutorial covers two complementary workflows:
Workflow |
When to use |
|---|---|
Canvas → TikZ |
Quick way to turn data plots into LaTeX-ready TikZ code |
``tikzfigure`` API directly |
Full control — nodes, shapes, annotations, arcs, colours … |
Prerequisites
pip install tikzfigure
To actually render the figure (not just generate code) you also need pdflatex installed on your system.
[1]:
import numpy as np
import tikzfigure as tz
from maxplotlib import Canvas
Part 1 — Canvas → TikZ
The fastest path: build a plot with the standard Canvas API, then pass backend='tikzfigure' to get a TikzFigure object back.
1.1 Basic usage
[2]:
x = np.linspace(0, 2 * np.pi, 60)
canvas = Canvas(width="10cm", ratio=0.6)
canvas.plot(x, np.sin(x), label="sin", color="steelblue", line_width=1.5)
canvas.plot(x, np.cos(x), label="cos", color="tomato", line_width=1.2)
canvas.set_xlabel("x")
canvas.set_ylabel("y")
canvas.set_title("Trigonometric functions")
# backend='tikzfigure' returns a TikzFigure object

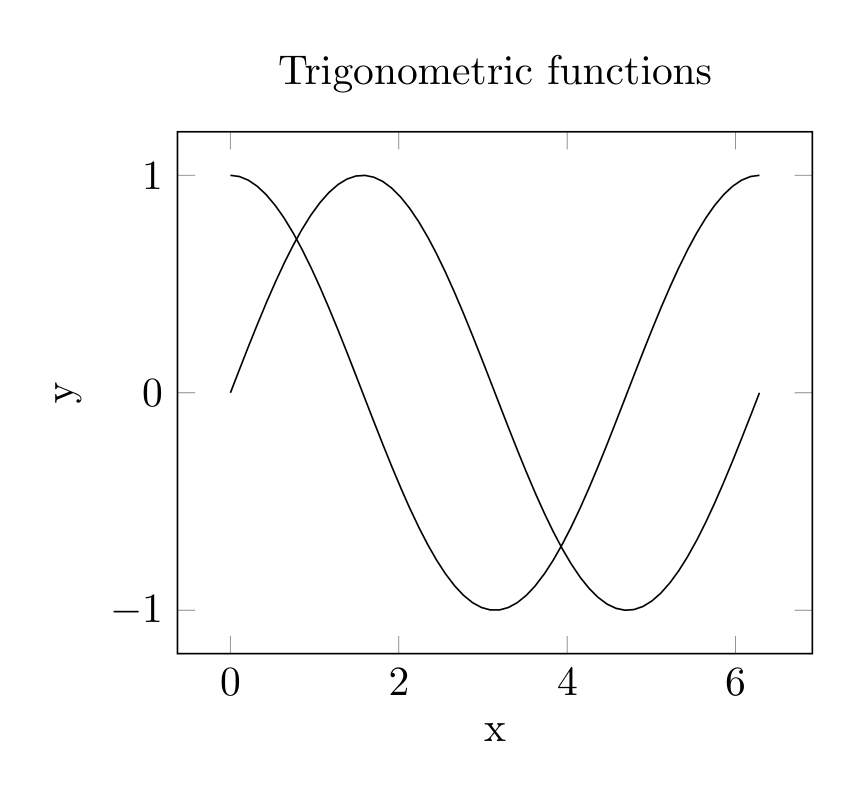

tikz = canvas.render(backend="tikzfigure")
print(type(tikz))
<class 'tikzfigure.core.figure.TikzFigure'>
Plotly preview
Before exporting to TikZ, you can preview the same Canvas interactively in a notebook using the Plotly backend:
[3]:
canvas.show(backend="plotly")
Data type cannot be displayed: application/vnd.plotly.v1+json
[4]:

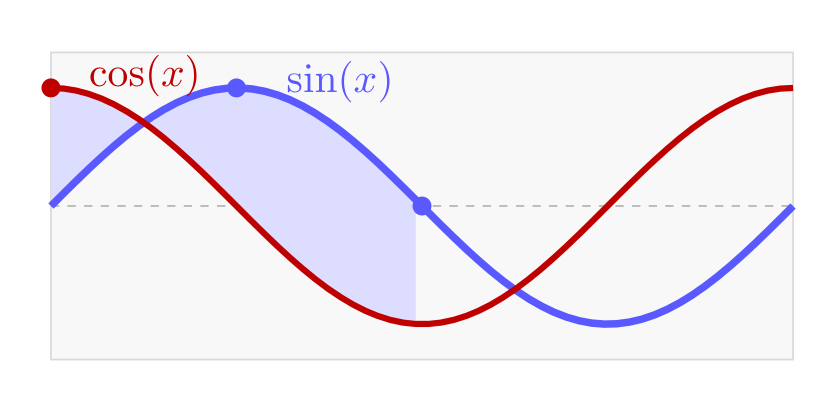

canvas.show(backend="tikzfigure")
warning: The `fitz` API is deprecated and will be removed in future. Use `import pymupdf` instead.
1.2 Inspecting the generated LaTeX
str(tikz) returns the raw LaTeX source string (and generate_tikz() remains available explicitly).Each data line becomes a
\draw command connecting coordinate pairs.[5]:
print(tikz)
\begin{tikzpicture}
\begin{groupplot}[group style={group size=1 by 1, horizontal sep=1.5cm}]
\nextgroupplot[xlabel=x, ylabel=y, grid=false, height=6cm, title=Trigonometric functions, axis width=10cm]
\addplot[color=steelblue] coordinates {(0.0,0.0) (0.10649466622338281,0.1062934856473654) (0.21298933244676563,0.21138262362962432) (0.31948399867014843,0.31407671202194876) (0.42597866489353126,0.41321218576837815) (0.5324733311169141,0.5076658003388399) (0.6389679973402969,0.5963673585385013) (0.7454626635636797,0.6783118362696161) (0.8519573297870625,0.7525707698561385) (0.9584519960104453,0.818302775908169) (1.0649466622338282,0.8747630845319613) (1.171441328457211,0.921311977870413) (1.2779359946805937,0.9574220383620055) (1.3844306609039765,0.9826841245925209) (1.4909253271273595,0.9968120070307501) (1.5974199933507423,0.9996456111234526) (1.703914659574125,0.9911528310040072) (1.8104093257975078,0.97142989326471) (1.9169039920208906,0.9407002666710333) (2.0233986582442736,0.8993121301712192) (2.1298933244676563,0.847734427889671) (2.236387990691039,0.7865515558026426) (2.342882656914422,0.7164567402983153) (2.4493773231378047,0.6382441836448203) (2.5558719893611874,0.5528000653611936) (2.66236665558457,0.4610925014493262) (2.768861321807953,0.3641605752528225) (2.875355988031336,0.26310256422752126) (2.981850654254719,0.1590634960190721) (3.0883453204781017,0.053222174842178754) (3.1948399867014845,-0.053222174842178505) (3.3013346529248673,-0.15906349601907185) (3.40782931914825,-0.26310256422752104) (3.514323985371633,-0.3641605752528219) (3.6208186515950156,-0.46109250144932556) (3.7273133178183984,-0.5528000653611931) (3.833807984041781,-0.6382441836448197) (3.940302650265164,-0.7164567402983147) (4.046797316488547,-0.7865515558026425) (4.15329198271193,-0.8477344278896709) (4.259786648935313,-0.8993121301712191) (4.366281315158695,-0.9407002666710332) (4.472775981382078,-0.9714298932647099) (4.579270647605461,-0.9911528310040071) (4.685765313828844,-0.9996456111234525) (4.7922599800522265,-0.9968120070307502) (4.898754646275609,-0.9826841245925211) (5.005249312498992,-0.9574220383620057) (5.111743978722375,-0.9213119778704132) (5.218238644945758,-0.8747630845319616) (5.32473331116914,-0.8183027759081695) (5.431227977392523,-0.752570769856139) (5.537722643615906,-0.6783118362696167) (5.644217309839289,-0.5963673585385021) (5.750711976062672,-0.50766580033884) (5.857206642286055,-0.4132121857683782) (5.963701308509438,-0.3140767120219489) (6.070195974732821,-0.21138262362962446) (6.1766906409562035,-0.1062934856473656) (6.283185307179586,-2.4492935982947064e-16)};
\addplot[color=tomato] coordinates {(0.0,1.0) (0.10649466622338281,0.9943348002101371) (0.21298933244676563,0.9774033898178667) (0.31948399867014843,0.9493976084683813) (0.42597866489353126,0.9106347728549132) (0.5324733311169141,0.8615540813938061) (0.6389679973402969,0.8027116379309637) (0.7454626635636797,0.7347741508630673) (0.8519573297870625,0.6585113790650386) (0.9584519960104453,0.5747874102144069) (1.0649466622338282,0.4845508703326502) (1.171441328457211,0.38882417547332077) (1.2779359946805937,0.28869194733962117) (1.3844306609039765,0.18528872408711453) (1.4909253271273595,0.0797861055530831) (1.5974199933507423,-0.026620521437774693) (1.703914659574125,-0.13272552728372186) (1.8104093257975078,-0.23732669987111465) (1.9169039920208906,-0.33923886611803006) (2.0233986582442736,-0.43730732045885534) (2.1298933244676563,-0.5304209081197424) (2.236387990691039,-0.6175246149461918) (2.342882656914422,-0.6976315211349846) (2.4493773231378047,-0.769833983429906) (2.5558719893611874,-0.8333139190825148) (2.66236665558457,-0.8873520750565714) (2.768861321807953,-0.9313361774523383) (2.875355988031336,-0.9647678688145159) (2.981850654254719,-0.9872683547213446) (3.0883453204781017,-0.9985826956767619) (3.1948399867014845,-0.9985826956767619) (3.3013346529248673,-0.9872683547213446) (3.40782931914825,-0.964767868814516) (3.514323985371633,-0.9313361774523385) (3.6208186515950156,-0.8873520750565718) (3.7273133178183984,-0.8333139190825152) (3.833807984041781,-0.7698339834299065) (3.940302650265164,-0.697631521134985) (4.046797316488547,-0.617524614946192) (4.15329198271193,-0.5304209081197426) (4.259786648935313,-0.43730732045885556) (4.366281315158695,-0.3392388661180305) (4.472775981382078,-0.2373266998711151) (4.579270647605461,-0.1327255272837223) (4.685765313828844,-0.02662052143777516) (4.7922599800522265,0.07978610555308265) (4.898754646275609,0.18528872408711383) (5.005249312498992,0.2886919473396205) (5.111743978722375,0.3888241754733201) (5.218238644945758,0.4845508703326496) (5.32473331116914,0.5747874102144063) (5.431227977392523,0.6585113790650381) (5.537722643615906,0.7347741508630667) (5.644217309839289,0.8027116379309631) (5.750711976062672,0.8615540813938061) (5.857206642286055,0.9106347728549131) (5.963701308509438,0.9493976084683813) (6.070195974732821,0.9774033898178666) (6.1766906409562035,0.9943348002101371) (6.283185307179586,1.0)};
\end{groupplot}
\end{tikzpicture}
1.2.1 Checking explicit width and height
When you set both width= and ratio=, the TikZ export now writes explicit pgfplots dimensions. This is useful when you want a tall figure for a column-sized layout in LaTeX.
[6]:
canvas_ratio2, ax_ratio2 = Canvas.subplots(width="10cm", ratio=2)
ax_ratio2.plot(x, np.exp(-x / np.pi), color="purple", line_width=1.5)
ax_ratio2.set_title("ratio = 2 export")
tikz_ratio2 = canvas_ratio2.render(backend="tikzfigure")
ratio2_code = tikz_ratio2.generate_tikz()
for line in ratio2_code.splitlines():
if "nextgroupplot" in line:
print(line.strip())
break
# Expected: width=10cm and height=20cm in the \nextgroupplot options
\nextgroupplot[grid=false, height=20cm, title=ratio = 2 export, axis width=10cm]
1.3 TikZ-specific kwargs
The TikZ backend passes extra keyword arguments straight to
tikzfigure.draw().Use ``line_width=`` (not matplotlib’s
linewidth=) to control stroke thickness.[7]:
canvas2, ax2 = Canvas.subplots(width="10cm", ratio=0.5)
ax2.plot(x, np.sin(x), color="navy", line_width=0.5, label="thin")
ax2.plot(x, np.sin(x) + 0.5, color="steelblue", line_width=1.5, label="medium")
ax2.plot(x, np.sin(x) + 1.0, color="royalblue", line_width=3.0, label="thick")
ax2.set_xlabel("x")
ax2.set_title("Line width comparison")
tikz2 = canvas2.render(backend="tikzfigure")
print(tikz2.generate_tikz())
\begin{tikzpicture}
\begin{groupplot}[group style={group size=1 by 1, horizontal sep=1.5cm}]
\nextgroupplot[xlabel=x, grid=false, height=5cm, title=Line width comparison, axis width=10cm]
\addplot[color=navy] coordinates {(0.0,0.0) (0.10649466622338281,0.1062934856473654) (0.21298933244676563,0.21138262362962432) (0.31948399867014843,0.31407671202194876) (0.42597866489353126,0.41321218576837815) (0.5324733311169141,0.5076658003388399) (0.6389679973402969,0.5963673585385013) (0.7454626635636797,0.6783118362696161) (0.8519573297870625,0.7525707698561385) (0.9584519960104453,0.818302775908169) (1.0649466622338282,0.8747630845319613) (1.171441328457211,0.921311977870413) (1.2779359946805937,0.9574220383620055) (1.3844306609039765,0.9826841245925209) (1.4909253271273595,0.9968120070307501) (1.5974199933507423,0.9996456111234526) (1.703914659574125,0.9911528310040072) (1.8104093257975078,0.97142989326471) (1.9169039920208906,0.9407002666710333) (2.0233986582442736,0.8993121301712192) (2.1298933244676563,0.847734427889671) (2.236387990691039,0.7865515558026426) (2.342882656914422,0.7164567402983153) (2.4493773231378047,0.6382441836448203) (2.5558719893611874,0.5528000653611936) (2.66236665558457,0.4610925014493262) (2.768861321807953,0.3641605752528225) (2.875355988031336,0.26310256422752126) (2.981850654254719,0.1590634960190721) (3.0883453204781017,0.053222174842178754) (3.1948399867014845,-0.053222174842178505) (3.3013346529248673,-0.15906349601907185) (3.40782931914825,-0.26310256422752104) (3.514323985371633,-0.3641605752528219) (3.6208186515950156,-0.46109250144932556) (3.7273133178183984,-0.5528000653611931) (3.833807984041781,-0.6382441836448197) (3.940302650265164,-0.7164567402983147) (4.046797316488547,-0.7865515558026425) (4.15329198271193,-0.8477344278896709) (4.259786648935313,-0.8993121301712191) (4.366281315158695,-0.9407002666710332) (4.472775981382078,-0.9714298932647099) (4.579270647605461,-0.9911528310040071) (4.685765313828844,-0.9996456111234525) (4.7922599800522265,-0.9968120070307502) (4.898754646275609,-0.9826841245925211) (5.005249312498992,-0.9574220383620057) (5.111743978722375,-0.9213119778704132) (5.218238644945758,-0.8747630845319616) (5.32473331116914,-0.8183027759081695) (5.431227977392523,-0.752570769856139) (5.537722643615906,-0.6783118362696167) (5.644217309839289,-0.5963673585385021) (5.750711976062672,-0.50766580033884) (5.857206642286055,-0.4132121857683782) (5.963701308509438,-0.3140767120219489) (6.070195974732821,-0.21138262362962446) (6.1766906409562035,-0.1062934856473656) (6.283185307179586,-2.4492935982947064e-16)};
\addplot[color=steelblue] coordinates {(0.0,0.5) (0.10649466622338281,0.6062934856473654) (0.21298933244676563,0.7113826236296243) (0.31948399867014843,0.8140767120219488) (0.42597866489353126,0.9132121857683781) (0.5324733311169141,1.00766580033884) (0.6389679973402969,1.0963673585385014) (0.7454626635636797,1.178311836269616) (0.8519573297870625,1.2525707698561384) (0.9584519960104453,1.318302775908169) (1.0649466622338282,1.3747630845319612) (1.171441328457211,1.4213119778704129) (1.2779359946805937,1.4574220383620053) (1.3844306609039765,1.4826841245925209) (1.4909253271273595,1.49681200703075) (1.5974199933507423,1.4996456111234526) (1.703914659574125,1.4911528310040072) (1.8104093257975078,1.4714298932647099) (1.9169039920208906,1.4407002666710333) (2.0233986582442736,1.3993121301712192) (2.1298933244676563,1.347734427889671) (2.236387990691039,1.2865515558026426) (2.342882656914422,1.2164567402983153) (2.4493773231378047,1.1382441836448203) (2.5558719893611874,1.0528000653611937) (2.66236665558457,0.9610925014493261) (2.768861321807953,0.8641605752528225) (2.875355988031336,0.7631025642275213) (2.981850654254719,0.6590634960190721) (3.0883453204781017,0.5532221748421787) (3.1948399867014845,0.4467778251578215) (3.3013346529248673,0.3409365039809281) (3.40782931914825,0.23689743577247896) (3.514323985371633,0.13583942474717808) (3.6208186515950156,0.038907498550674435) (3.7273133178183984,-0.05280006536119308) (3.833807984041781,-0.13824418364481972) (3.940302650265164,-0.21645674029831474) (4.046797316488547,-0.28655155580264247) (4.15329198271193,-0.3477344278896709) (4.259786648935313,-0.39931213017121914) (4.366281315158695,-0.44070026667103324) (4.472775981382078,-0.47142989326470985) (4.579270647605461,-0.4911528310040071) (4.685765313828844,-0.4996456111234525) (4.7922599800522265,-0.49681200703075024) (4.898754646275609,-0.4826841245925211) (5.005249312498992,-0.4574220383620057) (5.111743978722375,-0.4213119778704132) (5.218238644945758,-0.3747630845319616) (5.32473331116914,-0.31830277590816947) (5.431227977392523,-0.252570769856139) (5.537722643615906,-0.17831183626961666) (5.644217309839289,-0.09636735853850209) (5.750711976062672,-0.007665800338840012) (5.857206642286055,0.0867878142316218) (5.963701308509438,0.18592328797805108) (6.070195974732821,0.28861737637037554) (6.1766906409562035,0.3937065143526344) (6.283185307179586,0.4999999999999998)};
\addplot[color=royalblue] coordinates {(0.0,1.0) (0.10649466622338281,1.1062934856473654) (0.21298933244676563,1.2113826236296243) (0.31948399867014843,1.3140767120219488) (0.42597866489353126,1.4132121857683781) (0.5324733311169141,1.50766580033884) (0.6389679973402969,1.5963673585385014) (0.7454626635636797,1.678311836269616) (0.8519573297870625,1.7525707698561384) (0.9584519960104453,1.818302775908169) (1.0649466622338282,1.8747630845319612) (1.171441328457211,1.9213119778704129) (1.2779359946805937,1.9574220383620053) (1.3844306609039765,1.9826841245925209) (1.4909253271273595,1.99681200703075) (1.5974199933507423,1.9996456111234526) (1.703914659574125,1.9911528310040072) (1.8104093257975078,1.9714298932647099) (1.9169039920208906,1.9407002666710333) (2.0233986582442736,1.8993121301712192) (2.1298933244676563,1.847734427889671) (2.236387990691039,1.7865515558026426) (2.342882656914422,1.7164567402983153) (2.4493773231378047,1.6382441836448203) (2.5558719893611874,1.5528000653611937) (2.66236665558457,1.4610925014493261) (2.768861321807953,1.3641605752528225) (2.875355988031336,1.2631025642275213) (2.981850654254719,1.1590634960190722) (3.0883453204781017,1.0532221748421788) (3.1948399867014845,0.9467778251578215) (3.3013346529248673,0.8409365039809281) (3.40782931914825,0.7368974357724789) (3.514323985371633,0.6358394247471781) (3.6208186515950156,0.5389074985506744) (3.7273133178183984,0.4471999346388069) (3.833807984041781,0.3617558163551803) (3.940302650265164,0.28354325970168526) (4.046797316488547,0.21344844419735753) (4.15329198271193,0.1522655721103291) (4.259786648935313,0.10068786982878086) (4.366281315158695,0.059299733328966764) (4.472775981382078,0.028570106735290146) (4.579270647605461,0.008847168995992916) (4.685765313828844,0.0003543888765474845) (4.7922599800522265,0.0031879929692497644) (4.898754646275609,0.01731587540747892) (5.005249312498992,0.04257796163799432) (5.111743978722375,0.07868802212958681) (5.218238644945758,0.1252369154680384) (5.32473331116914,0.18169722409183053) (5.431227977392523,0.24742923014386098) (5.537722643615906,0.32168816373038334) (5.644217309839289,0.4036326414614979) (5.750711976062672,0.49233419966116) (5.857206642286055,0.5867878142316219) (5.963701308509438,0.685923287978051) (6.070195974732821,0.7886173763703755) (6.1766906409562035,0.8937065143526344) (6.283185307179586,0.9999999999999998)};
\end{groupplot}
\end{tikzpicture}
1.4 Layer-aware TikZ output
Assign data to layers with
layer=N.The TikZ backend respects the layer filter — useful for generating incremental reveal figures (e.g. in Beamer).
[8]:

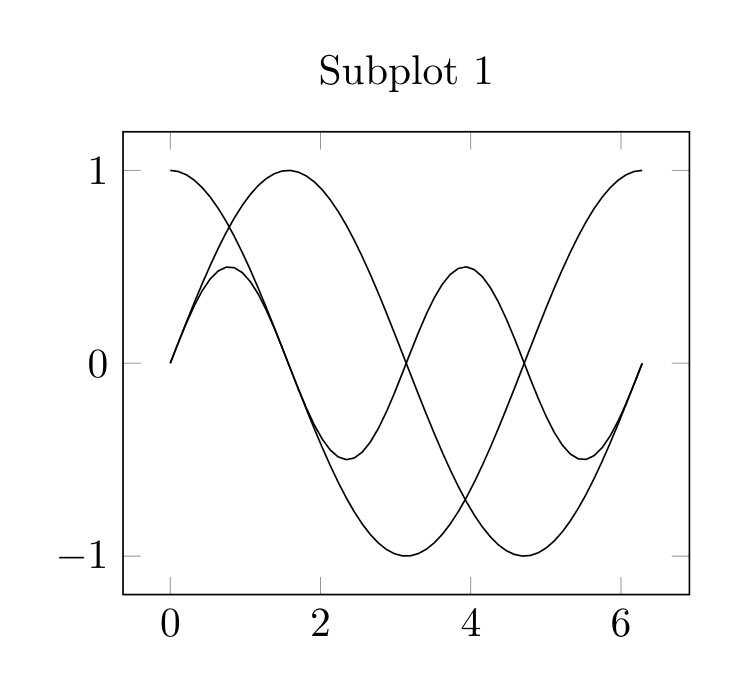

canvas3, ax3 = Canvas.subplots(width="10cm", ratio=0.55)
ax3.plot(x, np.sin(x), color="steelblue", line_width=1.5, layer=0, label="sin")
ax3.plot(x, np.cos(x), color="tomato", line_width=1.5, layer=1, label="cos")
ax3.plot(
x, np.sin(x) * np.cos(x), color="seagreen", line_width=1.0, layer=2, label="sin·cos"
)
# All layers available on the canvas
print("Available layers:", canvas3.layers)
# Render only layer 0 — one \draw command
tikz_l0 = canvas3.render(backend="tikzfigure", layers=[0])
print("\n--- Layer 0 only ---")
print(f"\\draw count: {tikz_l0.generate_tikz().count(chr(92) + 'draw')}")
# Render layers 0 and 1
tikz_l01 = canvas3.render(backend="tikzfigure", layers=[0, 1])
print("\n--- Layers 0 & 1 ---")
print(f"\\draw count: {tikz_l01.generate_tikz().count(chr(92) + 'draw')}")
Available layers: [0, 1, 2]
--- Layer 0 only ---
\draw count: 0
--- Layers 0 & 1 ---
\draw count: 0
1.5 Saving TikZ code to a file
You can embed the generated code directly in a LaTeX document:
[9]:
tikz_all = canvas3.render(backend="tikzfigure")
with open("figure.tex", "w") as f:
f.write(tikz_all.generate_tikz())
print("Saved figure.tex")
# In your LaTeX document:
# \input{figure.tex}
# or wrap it:
# \begin{figure}[h]
# \centering
# \input{figure.tex}
# \caption{My caption}
# \end{figure}
Saved figure.tex
1.6 Rendering the figure (requires pdflatex)
If pdflatex is installed, tikz.show() compiles the code and opens the PDF:
[10]:
# Requires pdflatex:
tikz_all.show(transparent=False)
1.7 Canvas → TikZ limitations
Feature |
Supported? |
|---|---|
Line plots ( |
✅ |
Layer filtering |
✅ |
|
✅ |
Horizontal subplots (1×n) |
✅ |
|
✅ |
|
✅ |
Axis labels / titles |
✅ |
For unsupported primitives, the Canvas API raises NotImplementedError; use the direct tikzfigure API for advanced TikZ shapes (Part 2 below).
Part 2 — The tikzfigure API
The tikzfigure package gives you a full Python interface to TikZ primitives. You build figures by adding nodes, paths, shapes, and annotations, then call generate_tikz() (or show()) to obtain the output.
import tikzfigure as tz
tf = tz.TikzFigure()
2.1 Drawing paths with draw()
tf.draw(nodes, ...) produces a \draw path through a list of (x, y) coordinates.
[11]:
tf = tz.TikzFigure()
x = np.linspace(0, 2 * np.pi, 60)
sin_nodes = [(float(xi), float(np.sin(xi))) for xi in x]
cos_nodes = [(float(xi), float(np.cos(xi))) for xi in x]
tf.draw(sin_nodes, color="steelblue", line_width=1.5)
tf.draw(cos_nodes, color="tomato", line_width=1.2)
print(tf.generate_tikz())
% --------------------------------------------- %
